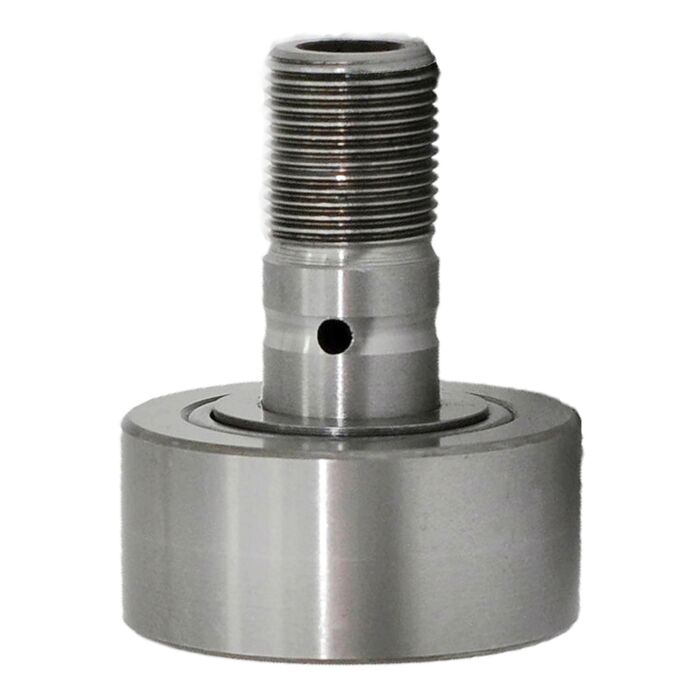

KRE62PPA Cam Follower
£133.36
£111.13
In stock
SKU
CF-23710
InsideDiameter:
28mm
OutsideDiameter: 62mm
Width: 29mm
OutsideDiameter: 62mm
Width: 29mm
Cam followers are specialised needle type bearings designed to follow cam lobe profiles. They are similar in operation to a standard bearing, but instead of an inner race they have a solid stud mount.
Needle type cam followers can achieve high speeds but havelimited axial and thrust load capacities. For higher loads, roller elements can be used instead.
D= 62
C= 29
d= 28
B= 80
B1= 49.5
B2= -
C1= 0.8
d1= 44
G= M24x1.5
G1= 25
M= -
M1= -
r min= 1
SW= 14
Eccentric Collar c= 1
B3= 22
Dynamic Load N= 24600
Static Load N= 44000
Fatigue Load Limit Pu= 5500
Radial Dynamic Load N= 58500
Radial Static Load N= 85000
Speed Rating rpm= 1900
Weight g= 800
Needle type cam followers can achieve high speeds but havelimited axial and thrust load capacities. For higher loads, roller elements can be used instead.
D= 62
C= 29
d= 28
B= 80
B1= 49.5
B2= -
C1= 0.8
d1= 44
G= M24x1.5
G1= 25
M= -
M1= -
r min= 1
SW= 14
Eccentric Collar c= 1
B3= 22
Dynamic Load N= 24600
Static Load N= 44000
Fatigue Load Limit Pu= 5500
Radial Dynamic Load N= 58500
Radial Static Load N= 85000
Speed Rating rpm= 1900
Weight g= 800
