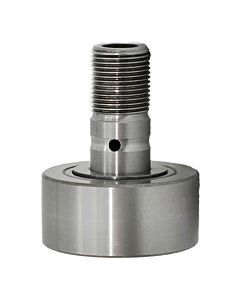

CCNB128SB Cam Follower
£220.98
£184.15
In stock
SKU
CF-23860
InsideDiameter:
38.10mm
=1.5inch OutsideDiameter: 101.60mm
=4inch Width: 57.15mm
=2.25inch
=1.5inch OutsideDiameter: 101.60mm
=4inch Width: 57.15mm
=2.25inch
Cam followers are specialised needle type bearings designed to follow cam lobe profiles. They are similar in operation to a standard bearing, but instead of an inner race they have a solid stud mount.
Needle type cam followers can achieve high speeds but havelimited axial and thrust load capacities. For higher loads, roller elements can be used instead.
A= 4 inch
B= 2.25 inch
C= 1.5 inch
D= 3.5 inch
E= 1.5 inch
Thread Class 2A F= 1-1/2-12 UNF
G= 3/4 inch
H= 1/8 inch
J= 1/4 inch
Min Boss Diameter= 2-9/32 inch
Recommended Bore= 1.5 inch
Recommended Torque= 5000 lbf-in
Max Static Capacity= 44770 lbs
Basic Dynamic Rating= 29985 lbs
Needle type cam followers can achieve high speeds but havelimited axial and thrust load capacities. For higher loads, roller elements can be used instead.
A= 4 inch
B= 2.25 inch
C= 1.5 inch
D= 3.5 inch
E= 1.5 inch
Thread Class 2A F= 1-1/2-12 UNF
G= 3/4 inch
H= 1/8 inch
J= 1/4 inch
Min Boss Diameter= 2-9/32 inch
Recommended Bore= 1.5 inch
Recommended Torque= 5000 lbf-in
Max Static Capacity= 44770 lbs
Basic Dynamic Rating= 29985 lbs
