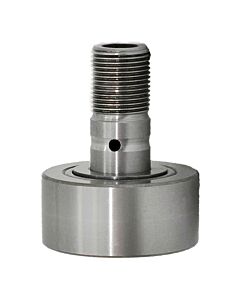

CNBH128SB Cam Follower
£226.20
£188.50
In stock
SKU
CF-24376
InsideDiameter:
50.80mm
=2inch OutsideDiameter: 101.60mm
=4inch Width: 57.15mm
=2.25inch
=2inch OutsideDiameter: 101.60mm
=4inch Width: 57.15mm
=2.25inch
Cam followers are specialised needle type bearings designed to follow cam lobe profiles. They are similar in operation to a standard bearing, but instead of an inner race they have a solid stud mount.
Needle type cam followers can achieve high speeds but havelimited axial and thrust load capacities. For higher loads, roller elements can be used instead.
A= 4 inch
B= 2.25 inch
C= 2 inch
D= 3.5 inch
E= 1.5 inch
Thread Class 2A F= 2-12 UN
G= 3/4 inch
H= 1/8 inch
J= 1/4 inch
Min Boss Diameter= 2-51/64 inch
Recommended Bore= 2 inch
Recommended Torque= 5000 lbf-in
Max Static Capacity= 89540 lbs
Basic Dynamic Rating= 29985 lbs
Needle type cam followers can achieve high speeds but havelimited axial and thrust load capacities. For higher loads, roller elements can be used instead.
A= 4 inch
B= 2.25 inch
C= 2 inch
D= 3.5 inch
E= 1.5 inch
Thread Class 2A F= 2-12 UN
G= 3/4 inch
H= 1/8 inch
J= 1/4 inch
Min Boss Diameter= 2-51/64 inch
Recommended Bore= 2 inch
Recommended Torque= 5000 lbf-in
Max Static Capacity= 89540 lbs
Basic Dynamic Rating= 29985 lbs
