Shaft Collars
Although simple in form, Shaft Collars are one of the most important machine elements used in Power Transmission applications such as those found in gearboxes and motors. Like Taperlocks, they are most suited as efficient locking mechanisms to bring Sprockets, V Pulley, Gears or Bearings into position. With a simple design for hassle-free installation, Shaft Collars can be used in locating components, Bearing faces and as mechanical stops which is helpful in positioning mechanical elements.
Bearing Shop UK provide a wide range of Shaft Collars available as Single Split, Double Split, or Unsplit. Unsplit Shaft Collars, also known as "Solid or Set Screw Collars", are the most basic type of Shaft Collar and are useful for gouging the set screw on the soft shaft surface. Single Split Shaft Collars are ideal to use on end shafts, whereas Double Split Shaft Collars can be used anywhere on the shaft, being easy to disassemble for a more versatile shaft collar function.
Can't find what you're looking for? – Contact us.
Bearing Shop UK provide a wide range of Shaft Collars available as Single Split, Double Split, or Unsplit. Unsplit Shaft Collars, also known as "Solid or Set Screw Collars", are the most basic type of Shaft Collar and are useful for gouging the set screw on the soft shaft surface. Single Split Shaft Collars are ideal to use on end shafts, whereas Double Split Shaft Collars can be used anywhere on the shaft, being easy to disassemble for a more versatile shaft collar function.
Can't find what you're looking for? – Contact us.
-
CADB04Z - 4mm Shaft Collar Double Split£4.61 £3.84Inside Diamater: 4mm Outside Diameter: 16mm Width: 9mm Material: EN8 Set screw: M3x8 Learn More -
CADB05Z - 5mm Shaft Collar Double Split£4.46 £3.72Inside Diamater: 5mm Outside Diameter: 16mm Width: 9mm Material: EN8 Set screw: M3x8 Learn More -
CADB06Z - 6mm Shaft Collar Double Split£4.75 £3.96Inside Diamater: 6mm Outside Diameter: 16mm Width: 9mm Material: EN8 Set screw: M3x8 Learn More -
CADB08Z - 8mm Shaft Collar Double Split£6.34 £5.28Inside Diamater: 8mm Outside Diameter: 18mm Width: 9mm Material: EN8 Set screw: M3x10 Learn More -
CADB09Z - 9mm Shaft Collar Double Split£6.91 £5.76Inside Diamater: 9mm Outside Diameter: 24mm Width: 9mm Material: EN8 Set screw: M3x10 Learn More -
CADB10Z - 10mm Shaft Collar Double Split£6.77 £5.64Inside Diamater: 10mm Outside Diameter: 24mm Width: 9mm Material: EN8 Set screw: M3x10 Learn More -
CADB11Z - 11mm Shaft Collar Double Split£7.20 £6.00Inside Diamater: 11mm Outside Diameter: 28mm Width: 11mm Material: EN8 Set screw: M4x12 Learn More -
CADB12Z - 12mm Shaft Collar Double Split£7.06 £5.88Inside Diamater: 12mm Outside Diameter: 28mm Width: 11mm Material: EN8 Set screw: M4x12 Learn More -
CADB13Z - 13mm Shaft Collar Double Split£7.06 £5.88Inside Diamater: 13mm Outside Diameter: 30mm Width: 11mm Material: EN8 Set screw: M4x12 Learn More -
CADB14Z - 14mm Shaft Collar Double Split£7.20 £6.00Inside Diamater: 14mm Outside Diameter: 30mm Width: 11mm Material: EN8 Set screw: M4x12 Learn More -
CADB15Z - 15mm Shaft Collar Double Split£7.34 £6.12Inside Diamater: 15mm Outside Diameter: 34mm Width: 13mm Material: EN8 Set screw: M5x16 Learn More -
CADB16Z - 16mm Shaft Collar Double Split£7.06 £5.88Inside Diamater: 16mm Outside Diameter: 34mm Width: 13mm Material: EN8 Set screw: M5x16 Learn More -
CADB17Z - 17mm Shaft Collar Double Split£7.34 £6.12Inside Diamater: 17mm Outside Diameter: 36mm Width: 13mm Material: EN8 Set screw: M5x16 Learn More -
CADB18Z - 18mm Shaft Collar Double Split£7.92 £6.60Inside Diamater: 18mm Outside Diameter: 36mm Width: 13mm Material: EN8 Set screw: M5x16 Learn More -
CADB19Z - 19mm Shaft Collar Double Split£7.78 £6.48Inside Diamater: 19mm Outside Diameter: 40mm Width: 15mm Material: EN8 Set screw: M6x16 Learn More -
CADB24Z - 24mm Shaft Collar Double Split£9.79 £8.16Inside Diamater: 24mm Outside Diameter: 45mm Width: 15mm Material: EN8 Set screw: M6x16 Learn More -
CADB25Z - 25mm Shaft Collar Double Split£10.51 £8.76Inside Diamater: 25mm Outside Diameter: 45mm Width: 15mm Material: EN8 Set screw: M6x16 Learn More -
CADB28Z - 28mm Shaft Collar Double Split£11.23 £9.36Inside Diamater: 28mm Outside Diameter: 48mm Width: 15mm Material: EN8 Set screw: M6x16 Learn More -
CADB32Z - 32mm Shaft Collar Double Split£11.52 £9.60Inside Diamater: 32mm Outside Diameter: 54mm Width: 15mm Material: EN8 Set screw: M6x18 Learn More -
CADB38Z - 38mm Shaft Collar Double Split£12.24 £10.20Inside Diamater: 38mm Outside Diameter: 60mm Width: 15mm Material: EN8 Set screw: M6x18 Learn More -
CADB45Z - 45mm Shaft Collar Double Split£18.14 £15.12Inside Diamater: 45mm Outside Diameter: 73mm Width: 19mm Material: EN8 Set screw: M8x25 Learn More -
CADB70Z - 70mm Shaft Collar Double Split£31.97 £26.64Inside Diamater: 70mm Outside Diameter: 98mm Width: 19mm Material: EN8 Set screw: M8x25 Learn More -
CADB80Z - 80mm Shaft Collar Double Split£37.15 £30.96Inside Diamater: 80mm Outside Diameter: 108mm Width: 19mm Material: EN8 Set screw: M8x25 Learn More -
CASB04Z - 4mm Single Split Shaft Collar£2.74 £2.28Inside Diamater: 4mm Outside Diameter: 16mm Width: 9mm Material: EN8 Set screw: M3x8 Learn More -
CASB05Z - 5mm Single Split Shaft Collar£2.88 £2.40Inside Diamater: 5mm Outside Diameter: 16mm Width: 9mm Material: EN8 Set screw: M3x8 Learn More -
CASB06Z - 6mm Single Split Shaft Collar£3.17 £2.64Inside Diamater: 6mm Outside Diameter: 16mm Width: 9mm Material: EN8 Set screw: M3x8 Learn More -
CASB08Z - 8mm Single Split Shaft Collar£3.46 £2.88Inside Diamater: 8mm Outside Diameter: 18mm Width: 9mm Material: EN8 Set screw: M3x8 Learn More -
CASB09Z - 9mm Single Split Shaft Collar£3.60 £3.00Inside Diamater: 9mm Outside Diameter: 24mm Width: 9mm Material: EN8 Set screw: M3x10 Learn More -
CASB10Z - 10mm Single Split Shaft Collar£3.60 £3.00Inside Diamater: 10mm Outside Diameter: 24mm Width: 9mm Material: EN8 Set screw: M3x10 Learn More -
CASB11Z - 11mm Single Split Shaft Collar£3.89 £3.24Inside Diamater: 11mm Outside Diameter: 28mm Width: 11mm Material: EN8 Set screw: M4x12 Learn More -
CASB12Z - 12mm Single Split Shaft Collar£4.03 £3.36Inside Diamater: 12mm Outside Diameter: 28mm Width: 11mm Material: EN8 Set screw: M4x12 Learn More -
CASB13Z - 13mm Single Split Shaft Collar£4.18 £3.48Inside Diamater: 13mm Outside Diameter: 30mm Width: 11mm Material: EN8 Set screw: M4x14 Learn More -
CASB14Z - 14mm Single Split Shaft Collar£4.32 £3.60Inside Diamater: 14mm Outside Diameter: 30mm Width: 11mm Material: EN8 Set screw: M4x14 Learn More -
CASB15Z - 15mm Single Split Shaft Collar£4.90 £4.08Inside Diamater: 15mm Outside Diameter: 34mm Width: 13mm Material: EN8 Set screw: M5x16 Learn More -
CASB16Z - 16mm Single Split Shaft Collar£4.75 £3.96Inside Diamater: 16mm Outside Diameter: 34mm Width: 13mm Material: EN8 Set screw: M5x16 Learn More -
CASB17Z - 17mm Single Split Shaft Collar£4.75 £3.96Inside Diamater: 17mm Outside Diameter: 36mm Width: 13mm Material: EN8 Set screw: M5x16 Learn More -
CASB18Z - 18mm Single Split Shaft Collar£5.18 £4.32Inside Diamater: 18mm Outside Diameter: 36mm Width: 13mm Material: EN8 Set screw: M5x16 Learn More -
CASB19Z - 19mm Single Split Shaft Collar£5.33 £4.44Inside Diamater: 19mm Outside Diameter: 40mm Width: 15mm Material: EN8 Set screw: M6x16 Learn More -
CASB20Z - 20mm Single Split Shaft Collar£7.63 £6.36Inside Diamater: 20mm Outside Diameter: 40mm Width: 15mm Material: EN8 Set screw: M6x16 Learn More -
CASB24Z - 24mm Single Split Shaft Collar£7.63 £6.36Inside Diamater: 24mm Outside Diameter: 45mm Width: 15mm Material: EN8 Set screw: M6x16 Learn More -
CASB25Z - 25mm Single Split Shaft Collar£7.49 £6.24Inside Diamater: 25mm Outside Diameter: 45mm Width: 15mm Material: EN8 Set screw: M6x16 Learn More -
CASB28Z - 28mm Single Split Shaft Collar£7.63 £6.36Inside Diamater: 28mm Outside Diameter: 48mm Width: 15mm Material: EN8 Set screw: M6x16 Learn More -
CASB30Z - 30mm Single Split Shaft Collar£8.21 £6.84Inside Diamater: 30mm Outside Diameter: 54mm Width: 15mm Material: EN8 Set screw: M6x18 Learn More -
CASB32Z - 32mm Single Split Shaft Collar£8.50 £7.08Inside Diamater: 32mm Outside Diameter: 54mm Width: 15mm Material: EN8 Set screw: M6x18 Learn More -
CASB35Z - 35mm Single Split Shaft Collar£7.92 £6.60Inside Diamater: 35mm Outside Diameter: 57mm Width: 15mm Material: EN8 Set screw: M6x18 Learn More -
CASB38Z - 38mm Single Split Shaft Collar£9.22 £7.68Inside Diamater: 38mm Outside Diameter: 60mm Width: 15mm Material: EN8 Set screw: M6x18 Learn More -
CASB40Z - 40mm Single Split Shaft Collar£10.94 £9.12Inside Diamater: 40mm Outside Diameter: 60mm Width: 15mm Material: EN8 Set screw: M6x18 Learn More -
CASB45Z - 45mm Single Split Shaft Collar£13.25 £11.04Inside Diamater: 45mm Outside Diameter: 73mm Width: 19mm Material: EN8 Set screw: M8x25 Learn More -
CASB50Z - 50mm Single Split Shaft Collar£15.26 £12.72Inside Diamater: 50mm Outside Diameter: 78mm Width: 19mm Material: EN8 Set screw: M8x25 Learn More -
CASB60Z - 60mm Single Split Shaft Collar£19.01 £15.84Inside Diamater: 60mm Outside Diameter: 88mm Width: 19mm Material: EN8 Set screw: M8x25 Learn More -
CASB70Z - 70mm Single Split Shaft Collar£22.61 £18.84Inside Diamater: 70mm Outside Diameter: 98mm Width: 19mm Material: EN8 Set screw: M8x25 Learn More -
CASB80Z - 80mm Single Split Shaft Collar£23.33 £19.44Inside Diamater: 80mm Outside Diameter: 108mm Width: 19mm Material: EN8 Set screw: M8x25 Learn More -
CABU04Z - 4mm Shaft Collar Unsplit£1.44 £1.20Inside Diamater: 4mm Outside Diameter: 8mm Width: 5mm Material: EN8 Learn More -
CABU05Z - 5mm Shaft Collar Unsplit£1.44 £1.20Inside Diamater: 5mm Outside Diameter: 10mm Width: 6mm Material: EN8 Learn More -
CABU06Z - 6mm Shaft Collar Unsplit£1.44 £1.20Inside Diamater: 6mm Outside Diameter: 12mm Width: 8mm Material: EN8 Learn More -
CABU07Z - 7mm Shaft Collar Unsplit£1.44 £1.20Inside Diamater: 7mm Outside Diameter: 12mm Width: 8mm Material: EN8 Learn More -
CABU08Z - 8mm Shaft Collar Unsplit£1.44 £1.20Inside Diamater: 8mm Outside Diameter: 16mm Width: 8mm Material: EN8 Learn More -
CABU09Z - 9mm Shaft Collar Unsplit£1.44 £1.20Inside Diamater: 9mm Outside Diameter: 18mm Width: 10mm Material: EN8 Learn More -
CABU10Z - 10mm Shaft Collar Unsplit£1.58 £1.32Inside Diamater: 10mm Outside Diameter: 20mm Width: 10mm Material: EN8 Learn More -
CABU11Z - 11mm Shaft Collar Unsplit£1.58 £1.32Inside Diamater: 11mm Outside Diameter: 20mm Width: 10mm Material: EN8 Learn More -
CABU12Z - 12mm Shaft Collar Unsplit£1.73 £1.44Inside Diamater: 12mm Outside Diameter: 22mm Width: 12mm Material: EN8 Learn More -
CABU13Z - 13mm Shaft Collar Unsplit£1.87 £1.56Inside Diamater: 13mm Outside Diameter: 22mm Width: 12mm Material: EN8 Learn More -
CABU14Z - 14mm Shaft Collar Unsplit£1.87 £1.56Inside Diamater: 14mm Outside Diameter: 25mm Width: 12mm Material: EN8 Learn More -
CABU15Z - 15mm Shaft Collar Unsplit£2.02 £1.68Inside Diamater: 15mm Outside Diameter: 25mm Width: 12mm Material: EN8 Learn More -
CABU16Z - 16mm Shaft Collar Unsplit£2.16 £1.80Inside Diamater: 16mm Outside Diameter: 28mm Width: 12mm Material: EN8 Learn More -
CABU17Z - 17mm Shaft Collar Unsplit£2.16 £1.80Inside Diamater: 17mm Outside Diameter: 28mm Width: 12mm Material: EN8 Learn More -
CABU18Z - 18mm Shaft Collar Unsplit£2.30 £1.92Inside Diamater: 18mm Outside Diameter: 32mm Width: 14mm Material: EN8 Learn More -
CABU20Z - 20mm Shaft Collar Unsplit£2.45 £2.04Inside Diamater: 20mm Outside Diameter: 32mm Width: 14mm Material: EN8 Learn More -
CABU22Z - 22mm Shaft Collar Unsplit£2.59 £2.16Inside Diamater: 22mm Outside Diameter: 36mm Width: 14mm Material: EN8 Learn More -
CABU24Z - 24mm Shaft Collar Unsplit£2.88 £2.40Inside Diamater: 24mm Outside Diameter: 40mm Width: 16mm Material: EN8 Learn More -
CABU25Z - 25mm Shaft Collar Unsplit£2.88 £2.40Inside Diamater: 25mm Outside Diameter: 40mm Width: 16mm Material: EN8 Learn More -
CABU28Z - 28mm Shaft Collar Unsplit£3.17 £2.64Inside Diamater: 28mm Outside Diameter: 45mm Width: 16mm Material: EN8 Learn More -
CABU30Z - 30mm Shaft Collar Unsplit£3.31 £2.76Inside Diamater: 30mm Outside Diameter: 45mm Width: 16mm Material: EN8 Learn More -
CABU32Z - 32mm Shaft Collar Unsplit£3.60 £3.00Inside Diamater: 32mm Outside Diameter: 50mm Width: 16mm Material: EN8 Learn More -

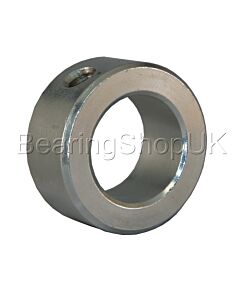

CABU35Z - 35mm Shaft Collar Unsplit£3.74 £3.12Inside Diamater: 35mm Outside Diameter: 56mm Width: 16mm Material: EN8 Learn More -
CABU38Z - 38mm Shaft Collar Unsplit£4.61 £3.84Inside Diamater: 38mm Outside Diameter: 56mm Width: 16mm Material: EN8 Learn More -
CABU40Z - 40mm Shaft Collar Unsplit£6.77 £5.64Inside Diamater: 40mm Outside Diameter: 63mm Width: 18mm Material: EN8 Learn More -
CABU45Z - 45mm Shaft Collar Unsplit£9.50 £7.92Inside Diamater: 45mm Outside Diameter: 70mm Width: 18mm Material: EN8 Learn More -
CABU50Z - 50mm Shaft Collar Unsplit£11.81 £9.84Inside Diamater: 50mm Outside Diameter: 80mm Width: 18mm Material: EN8 Learn More -
CABU60Z - 60mm Shaft Collar Unsplit£15.12 £12.60Inside Diamater: 60mm Outside Diameter: 90mm Width: 20mm Material: EN8 Learn More -
CABU70Z - 70mm Shaft Collar Unsplit£21.02 £17.52Inside Diamater: 70mm Outside Diameter: 100mm Width: 20mm Material: EN8 Learn More -
CABU05ST - 5mm Stainless Shaft Collar£1.73 £1.44Inside Diamater: 5mm Outside Diameter: 10mm Width: 6mm Material: Stainless-304 Set screw: M3 Learn More -
CABU06ST - 6mm Stainless Shaft Collar£1.73 £1.44Inside Diamater: 6mm Outside Diameter: 12mm Width: 8mm Material: Stainless-304 Set screw: M4 Learn More -
CABU08ST - 8mm Stainless Shaft Collar£2.16 £1.80Inside Diamater: 8mm Outside Diameter: 16mm Width: 8mm Material: Stainless-304 Set screw: M4 Learn More -
CABU10ST - 10mm Stainless Shaft Collar£4.90 £4.08Inside Diamater: 10mm Outside Diameter: 20mm Width: 10mm Material: Stainless-304 Set screw: M5 Learn More -
CABU12ST - 12mm Stainless Shaft Collar£4.61 £3.84Inside Diamater: 12mm Outside Diameter: 22mm Width: 12mm Material: Stainless-304 Set screw: M6 Learn More -
CABU14ST - 14mm Stainless Shaft Collar£3.46 £2.88Inside Diamater: 14mm Outside Diameter: 25mm Width: 12mm Material: Stainless-304 Set screw: M6 Learn More -
CABU15ST - 15mm Stainless Shaft Collar£3.60 £3.00Inside Diamater: 15mm Outside Diameter: 25mm Width: 12mm Material: Stainless-304 Set screw: M6 Learn More -
CABU16ST - 16mm Stainless Shaft Collar£3.89 £3.24Inside Diamater: 16mm Outside Diameter: 28mm Width: 12mm Material: Stainless-304 Set screw: M6 Learn More -
CABU18ST - 18mm Stainless Shaft Collar£4.18 £3.48Inside Diamater: 18mm Outside Diameter: 32mm Width: 14mm Material: Stainless-304 Set screw: M6 Learn More -
CABU20ST - 20mm Stainless Shaft Collar£8.64 £7.20Inside Diamater: 20mm Outside Diameter: 32mm Width: 14mm Material: Stainless-304 Set screw: M6 Learn More -
CABU22ST - 22mm Stainless Shaft Collar£5.47 £4.56Inside Diamater: 22mm Outside Diameter: 36mm Width: 14mm Material: Stainless-304 Set screw: M8 Learn More -
CABU24ST - 24mm Stainless Shaft Collar£6.34 £5.28Inside Diamater: 24mm Outside Diameter: 40mm Width: 16mm Material: Stainless-304 Set screw: M8 Learn More -
CABU25ST - 25mm Stainless Shaft Collar£7.78 £6.48Inside Diamater: 25mm Outside Diameter: 40mm Width: 16mm Material: Stainless-304 Set screw: M8 Learn More -
CABU30ST - 30mm Stainless Shaft Collar£8.78 £7.32Inside Diamater: 30mm Outside Diameter: 45mm Width: 16mm Material: Stainless-304 Set screw: M8 Learn More -
CABU32ST - 32mm Stainless Shaft Collar£9.65 £8.04Inside Diamater: 32mm Outside Diameter: 50mm Width: 16mm Material: Stainless-304 Set screw: M8 Learn More -
CABU35ST - 35mm Stainless Shaft Collar£10.08 £8.40Inside Diamater: 35mm Outside Diameter: 56mm Width: 16mm Material: Stainless-304 Set screw: M8 Learn More -
CABU40ST - 40mm Stainless Shaft Collar£16.56 £13.80Inside Diamater: 40mm Outside Diameter: 63mm Width: 18mm Material: Stainless-304 Set screw: M10 Learn More -
CABU45ST - 45mm Stainless Shaft Collar£18.29 £15.24Inside Diamater: 45mm Outside Diameter: 70mm Width: 18mm Material: Stainless-304 Set screw: M10 Learn More -
CABU50ST - 50mm Stainless Shaft Collar£26.06 £21.72Inside Diamater: 50mm Outside Diameter: 80mm Width: 18mm Material: Stainless-304 Set screw: M10 Learn More
