Shaft Collars

Shaft Collars

Although simple in form, Shaft Collars are one of the most important machine elements used in Power Transmission applications such as those found in gearboxes and motors. Like Taperlocks, they are most suited as efficient locking mechanisms to bring Sprockets, V Pulley, Gears or Bearings into position. With a simple design for hassle-free installation, Shaft Collars can be used in locating components, Bearing faces and as mechanical stops which is helpful in positioning mechanical elements.

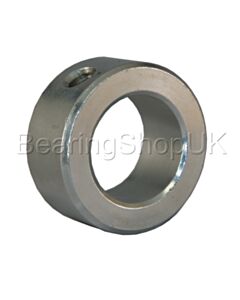

Bearing Shop UK provide a wide range of Shaft Collars available as Single Split, Double Split, or Unsplit. Unsplit Shaft Collars, also known as "Solid or Set Screw Collars", are the most basic type of Shaft Collar and are useful for gouging the set screw on the soft shaft surface. Single Split Shaft Collars are ideal to use on end shafts, whereas Double Split Shaft Collars can be used anywhere on the shaft, being easy to disassemble for a more versatile shaft collar function.

Can't find what you're looking for? – Contact us.

Items 1 to 25 of 100 total

per page
Page:
  1. 1
  2. 2
  3. 3
  4. 4

List  Grid

Set Descending Direction
  1. CADB04Z - 4mm Shaft Collar Double Split

    CADB04Z - 4mm Shaft Collar Double Split

    Inside Diamater: 4mm Outside Diameter: 16mm Width: 9mm Material: EN8 Set screw: M3x8 Learn More
    Excl. VAT £3.20 Incl. VAT £3.84
  2. CADB05Z - 5mm Shaft Collar Double Split

    CADB05Z - 5mm Shaft Collar Double Split

    Inside Diamater: 5mm Outside Diameter: 16mm Width: 9mm Material: EN8 Set screw: M3x8 Learn More
    Excl. VAT £3.10 Incl. VAT £3.72
  3. CADB06Z - 6mm Shaft Collar Double Split

    CADB06Z - 6mm Shaft Collar Double Split

    Inside Diamater: 6mm Outside Diameter: 16mm Width: 9mm Material: EN8 Set screw: M3x8 Learn More
    Excl. VAT £3.30 Incl. VAT £3.96
  4. CADB08Z - 8mm Shaft Collar Double Split

    CADB08Z - 8mm Shaft Collar Double Split

    Inside Diamater: 8mm Outside Diameter: 18mm Width: 9mm Material: EN8 Set screw: M3x10 Learn More
    Excl. VAT £4.40 Incl. VAT £5.28
  5. CADB09Z - 9mm Shaft Collar Double Split

    CADB09Z - 9mm Shaft Collar Double Split

    Inside Diamater: 9mm Outside Diameter: 24mm Width: 9mm Material: EN8 Set screw: M3x10 Learn More
    Excl. VAT £4.80 Incl. VAT £5.76
  6. CADB10Z - 10mm Shaft Collar Double Split

    CADB10Z - 10mm Shaft Collar Double Split

    Inside Diamater: 10mm Outside Diameter: 24mm Width: 9mm Material: EN8 Set screw: M3x10 Learn More
    Excl. VAT £4.70 Incl. VAT £5.64
  7. CADB11Z - 11mm Shaft Collar Double Split

    CADB11Z - 11mm Shaft Collar Double Split

    Inside Diamater: 11mm Outside Diameter: 28mm Width: 11mm Material: EN8 Set screw: M4x12 Learn More
    Excl. VAT £5.00 Incl. VAT £6.00

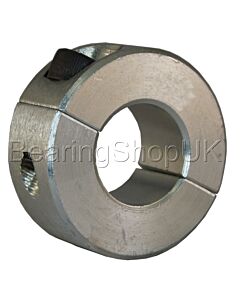

  8. CADB12Z - 12mm Shaft Collar Double Split

    CADB12Z - 12mm Shaft Collar Double Split

    Inside Diamater: 12mm Outside Diameter: 28mm Width: 11mm Material: EN8 Set screw: M4x12 Learn More
    Excl. VAT £4.90 Incl. VAT £5.88
  9. CADB13Z - 13mm Shaft Collar Double Split

    CADB13Z - 13mm Shaft Collar Double Split

    Inside Diamater: 13mm Outside Diameter: 30mm Width: 11mm Material: EN8 Set screw: M4x12 Learn More
    Excl. VAT £4.90 Incl. VAT £5.88
  10. CADB14Z - 14mm Shaft Collar Double Split

    CADB14Z - 14mm Shaft Collar Double Split

    Inside Diamater: 14mm Outside Diameter: 30mm Width: 11mm Material: EN8 Set screw: M4x12 Learn More
    Excl. VAT £5.00 Incl. VAT £6.00
  11. CADB15Z - 15mm Shaft Collar Double Split

    CADB15Z - 15mm Shaft Collar Double Split

    Inside Diamater: 15mm Outside Diameter: 34mm Width: 13mm Material: EN8 Set screw: M5x16 Learn More
    Excl. VAT £5.10 Incl. VAT £6.12
  12. CADB16Z - 16mm Shaft Collar Double Split

    CADB16Z - 16mm Shaft Collar Double Split

    Inside Diamater: 16mm Outside Diameter: 34mm Width: 13mm Material: EN8 Set screw: M5x16 Learn More
    Excl. VAT £4.90 Incl. VAT £5.88
  13. CADB17Z - 17mm Shaft Collar Double Split

    CADB17Z - 17mm Shaft Collar Double Split

    Inside Diamater: 17mm Outside Diameter: 36mm Width: 13mm Material: EN8 Set screw: M5x16 Learn More
    Excl. VAT £5.10 Incl. VAT £6.12
  14. CADB18Z - 18mm Shaft Collar Double Split

    CADB18Z - 18mm Shaft Collar Double Split

    Inside Diamater: 18mm Outside Diameter: 36mm Width: 13mm Material: EN8 Set screw: M5x16 Learn More
    Excl. VAT £5.50 Incl. VAT £6.60
  15. CADB19Z - 19mm Shaft Collar Double Split

    CADB19Z - 19mm Shaft Collar Double Split

    Inside Diamater: 19mm Outside Diameter: 40mm Width: 15mm Material: EN8 Set screw: M6x16 Learn More
    Excl. VAT £5.40 Incl. VAT £6.48
  16. CADB24Z - 24mm Shaft Collar Double Split

    CADB24Z - 24mm Shaft Collar Double Split

    Inside Diamater: 24mm Outside Diameter: 45mm Width: 15mm Material: EN8 Set screw: M6x16 Learn More
    Excl. VAT £6.80 Incl. VAT £8.16
  17. CADB25Z - 25mm Shaft Collar Double Split

    CADB25Z - 25mm Shaft Collar Double Split

    Inside Diamater: 25mm Outside Diameter: 45mm Width: 15mm Material: EN8 Set screw: M6x16 Learn More
    Excl. VAT £7.30 Incl. VAT £8.76
  18. CADB28Z - 28mm Shaft Collar Double Split

    CADB28Z - 28mm Shaft Collar Double Split

    Inside Diamater: 28mm Outside Diameter: 48mm Width: 15mm Material: EN8 Set screw: M6x16 Learn More
    Excl. VAT £7.80 Incl. VAT £9.36
  19. CADB32Z - 32mm Shaft Collar Double Split

    CADB32Z - 32mm Shaft Collar Double Split

    Inside Diamater: 32mm Outside Diameter: 54mm Width: 15mm Material: EN8 Set screw: M6x18 Learn More
    Excl. VAT £8.00 Incl. VAT £9.60
  20. CADB38Z - 38mm Shaft Collar Double Split

    CADB38Z - 38mm Shaft Collar Double Split

    Inside Diamater: 38mm Outside Diameter: 60mm Width: 15mm Material: EN8 Set screw: M6x18 Learn More
    Excl. VAT £8.50 Incl. VAT £10.20
  21. CADB45Z - 45mm Shaft Collar Double Split

    CADB45Z - 45mm Shaft Collar Double Split

    Inside Diamater: 45mm Outside Diameter: 73mm Width: 19mm Material: EN8 Set screw: M8x25 Learn More
    Excl. VAT £12.60 Incl. VAT £15.12
  22. CADB70Z - 70mm Shaft Collar Double Split

    CADB70Z - 70mm Shaft Collar Double Split

    Inside Diamater: 70mm Outside Diameter: 98mm Width: 19mm Material: EN8 Set screw: M8x25 Learn More
    Excl. VAT £22.20 Incl. VAT £26.64
  23. CADB80Z - 80mm Shaft Collar Double Split

    CADB80Z - 80mm Shaft Collar Double Split

    Inside Diamater: 80mm Outside Diameter: 108mm Width: 19mm Material: EN8 Set screw: M8x25 Learn More
    Excl. VAT £25.80 Incl. VAT £30.96
  24. CASB04Z - 4mm Single Split Shaft Collar

    CASB04Z - 4mm Single Split Shaft Collar

    Inside Diamater: 4mm Outside Diameter: 16mm Width: 9mm Material: EN8 Set screw: M3x8 Learn More
    Excl. VAT £1.90 Incl. VAT £2.28
  25. CASB05Z - 5mm Single Split Shaft Collar

    CASB05Z - 5mm Single Split Shaft Collar

    Inside Diamater: 5mm Outside Diameter: 16mm Width: 9mm Material: EN8 Set screw: M3x8 Learn More
    Excl. VAT £2.00 Incl. VAT £2.40

Items 1 to 25 of 100 total

per page
Page:
  1. 1
  2. 2
  3. 3
  4. 4

List  Grid

Set Descending Direction
