S20 2014WH 10

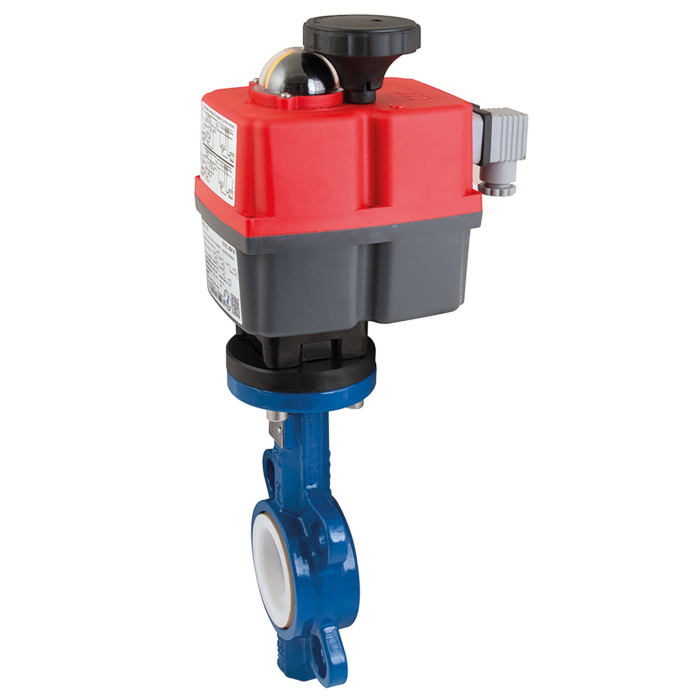

2.1/2" WAFER B/FLY VALVE CI/SS/PT MV
Features: Wafer pattern butterfly valve to suit flanges PN6/10/16, ANSI150 and BS 10 Table D/E. Available in cast iron, ductile iron, stainless steel or carbon steel body. Stainless steel, ductile iron ENP and aluminium bronze disc options available. Liners available in EPDM, NBR, silicone, PTFE on silicone or FPM. WRAS approved valve option available (2014WA). J+J J4CS on/off electric actuator. Multi voltage 24-240V DC/V AC 50/60Hz. Multicoloured LED light for continuous status feedback for the user. Electronic torque limiter with auto gearbox relaxing. Failsafe and/or modulating configurations can be used with the J4CS electric actuator. Sized based on 10 bar wet non-abrasive duty at +70ﾰC.
BearingShopUK holds a large stock of Process Valves and Instrumentation equipment, including the S20 2014WH 10 Range of Electric Actuated Butterfly Valve.

Please allow 3-4 days for delivery from our Fluid Power Branch.

Please view the below PDF for more information,
TS956
