S20 2014LA 08

11/2"2014LA DI/SS/EPDM L+T

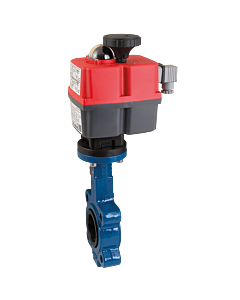

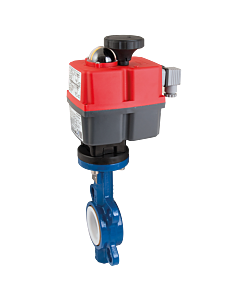

Features: Lugged and tapped butterfly valve to suit PN16 flanges. Other flanges are available on request. Available in ductile iron, carbon steel or stainless steel body. Stainless steel, ductile iron ENP and aluminium bronze disc options available. Liners available in EPDM, NBR, PTFE on silicone or FPM. WRAS approved valve option available (2014LA). J+J J4CS on/off electric actuator. Multi voltage 24-240V DC/V AC 50/60Hz. Multicoloured LED light for continuous status feedback for the user. Electronic torque limiter with auto gearbox relaxing. Failsafe and/or modulating configurations can be used with the J4CS electric actuator. Sized based on 10 bar wet non-abrasive duty at +70ﾰC.
BearingShopUK holds a large stock of Process Valves and Instrumentation equipment, including the S20 2014LA 08 Range of Electric Actuated Butterfly Valve.

Please allow 3-4 days for delivery from our Fluid Power Branch.

Please view the below PDF for more information,
