PI20
£1,424.05
£1,186.71
In stock
SKU
FT-PI20

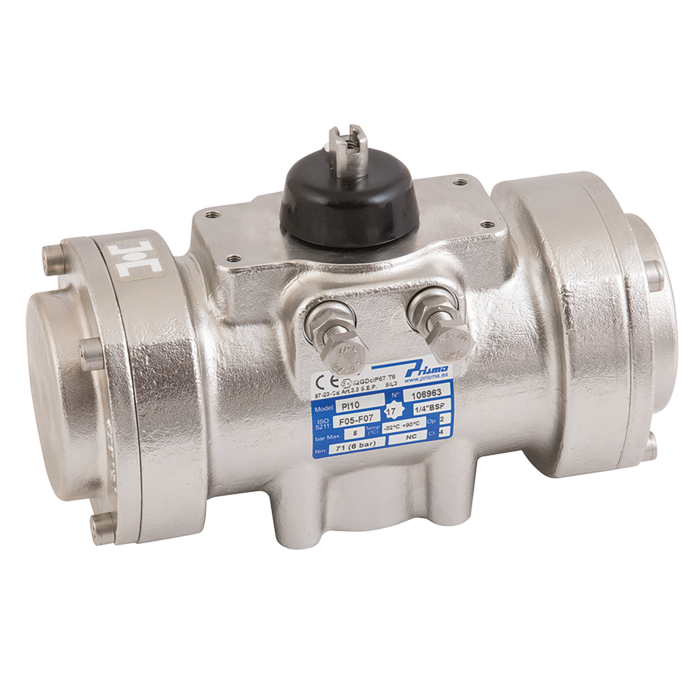

PRISMA SS PI20 DA ACTUATOR
PRISMA SS PI20 DA ACTUATOR
Features: 0-90ﾰ rotation angle to pilot ball, butterfly and plug valves. Double acting torques from 25 to 1180 Nm at 6 bar. Single acting torques from 11.3 to 491.6 Nm end of spring. Stainless steel body. ATEX II 2G Ex h IIC T6 Gb / II 2D Ex h IIIC T80ﾰC Db certification. Suitable for use in a SIL safety loop. Conforms to ISO 5211, DIN 3337 and VDI/VDE 3845. NAMUR pneumatic connection for solenoid valve installation.
BearingShopUK holds a large stock of Process Valves and Instrumentation equipment, including the PI20 Range of Pneumatic Actuator.
Please allow 3-4 days for delivery from our Fluid Power Branch.
Please view the below PDF for more information,
Features: 0-90ﾰ rotation angle to pilot ball, butterfly and plug valves. Double acting torques from 25 to 1180 Nm at 6 bar. Single acting torques from 11.3 to 491.6 Nm end of spring. Stainless steel body. ATEX II 2G Ex h IIC T6 Gb / II 2D Ex h IIIC T80ﾰC Db certification. Suitable for use in a SIL safety loop. Conforms to ISO 5211, DIN 3337 and VDI/VDE 3845. NAMUR pneumatic connection for solenoid valve installation.
BearingShopUK holds a large stock of Process Valves and Instrumentation equipment, including the PI20 Range of Pneumatic Actuator.
Please allow 3-4 days for delivery from our Fluid Power Branch.
Please view the below PDF for more information,
