PA25LP
£737.45
£614.54
In stock
SKU
FT-PA25LP

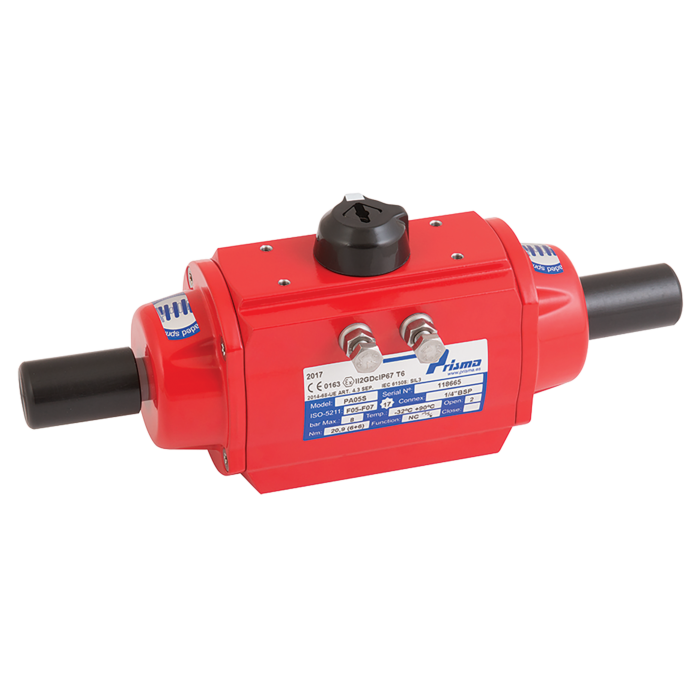

PRISMA PA25 DA ACTUATOR C/W LAPS
PRISMA PA25 DA ACTUATOR C/W LAPS
Features: 0-90ﾰ rotation angle to pilot ball, butterfly and plug valves. Double acting torques from 28.5 to 269.2 Nm at 6 bar. Single acting torques from 12.7 to 195.7 Nm end of spring. Rilsan and epoxy coated aluminium body. ATEX II 2G Ex h IIB T6 Gb / II 2D Ex h IIIC T80ﾰC Db certification. Suitable for use in a SIL safety loop. Conforms to ISO 5211, DIN 3337 and VDI/VDE 3845. NAMUR pneumatic connection for solenoid valve installation.
BearingShopUK holds a large stock of Process Valves and Instrumentation equipment, including the PA25LP Range of Pneumatic Actuator.
Please allow 3-4 days for delivery from our Fluid Power Branch.
Please view the below PDF for more information,
Features: 0-90ﾰ rotation angle to pilot ball, butterfly and plug valves. Double acting torques from 28.5 to 269.2 Nm at 6 bar. Single acting torques from 12.7 to 195.7 Nm end of spring. Rilsan and epoxy coated aluminium body. ATEX II 2G Ex h IIB T6 Gb / II 2D Ex h IIIC T80ﾰC Db certification. Suitable for use in a SIL safety loop. Conforms to ISO 5211, DIN 3337 and VDI/VDE 3845. NAMUR pneumatic connection for solenoid valve installation.
BearingShopUK holds a large stock of Process Valves and Instrumentation equipment, including the PA25LP Range of Pneumatic Actuator.
Please allow 3-4 days for delivery from our Fluid Power Branch.
Please view the below PDF for more information,
