Bearing Inserts

Bearing Inserts

Commonly used in many mechanical applications, as well as construction, Bearings are categorised and classified according to the purpose that they serve – either to reduce friction, carry more load or, like magnetic Bearings, to perform a special task. Another type of Bearing available at Bearing Shop UK are Bearing Inserts.

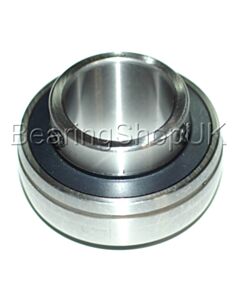

Unlike typical Ball Bearings, Bearing Inserts have extended inner rings. This provides better shaft support as they can be mounted on shafts without the use of shoulders, Lock Nuts or Bearing Adapter Sleeves. Affording a huge advantage, the wider rings allow better load distribution and they can be fitted onto the shaft without using special tools or equipment.

Bearing Inserts are usually locked in place using Set Screws or Shaft Collars. They are a good replacement for radial Bearings meant for heavy duty applications, with Bearing Inserts being used in a wide range of applications due to their versatility and affordability.

Browse our store for a comprehensive range of mechanical products like V Belts and V Pulleys for Power Transmission and many more.

Can't find what you're looking for? – Contact us.

Items 1 to 25 of 272 total

per page
Page:
  1. 1
  2. 2
  3. 3
  4. 4
  5. 5

List  Grid

Set Descending Direction
  1. 1017-12G Bearing Insert

    1017-12G Bearing Insert

    Inside Diameter: 12mm
    Outside Diameter: 40mm
    Inner Width: 27.38mm
    Outer Width: 12mm
    Style: spherical outer and integral set screw lock Learn More
    Excl. VAT £12.59 Incl. VAT £15.11
  2. 1117-12 Bearing Insert

    1117-12 Bearing Insert

    Inside Diameter: 12mm
    Outside Diameter: 40mm
    Inner Width: 27.38mm
    Outer Width: 12mm
    Style: parallel outer and integral set screw lock Learn More
    Excl. VAT £12.59 Incl. VAT £15.11
  3. 1017-1/2G Bearing Insert

    1017-1/2G Bearing Insert

    Inside Diameter: 12.7mm (1/2")
    Outside Diameter: 40mm
    Inner Width: 27.38mm
    Outer Width: 12mm
    Style: spherical outer and integral set screw lock Learn More
    Excl. VAT £0.00 Incl. VAT £0.00
  4. 1117-1/2 Bearing Insert

    1117-1/2 Bearing Insert

    Inside Diameter: 12.7mm (1/2")
    Outside Diameter: 40mm
    Inner Width: 27.38mm
    Outer Width: 12mm
    Style: parallel outer and integral set screw lock Learn More
    Excl. VAT £12.58 Incl. VAT £15.10
  5. 1017-15G Bearing Insert

    1017-15G Bearing Insert

    Inside Diameter: 15mm
    Outside Diameter: 40mm
    Inner Width: 27.38mm
    Outer Width: 12mm
    Style: spherical outer and integral set screw lock Learn More
    Excl. VAT £12.59 Incl. VAT £15.11
  6. 1117-15 Bearing Insert

    1117-15 Bearing Insert

    Inside Diameter: 15mm
    Outside Diameter: 40mm
    Inner Width: 27.38mm
    Outer Width: 12mm
    Style: parallel outer and integral set screw lock Learn More
    Excl. VAT £12.59 Incl. VAT £15.11
  7. 1017-5/8G Bearing Insert

    1017-5/8G Bearing Insert

    Inside Diameter: 15.88mm (5/8")
    Outside Diameter: 40mm
    Inner Width: 27.38mm
    Outer Width: 12mm
    Style: spherical outer and integral set screw lock Learn More
    Excl. VAT £13.22 Incl. VAT £15.86
  8. 11175/8 Bearing Insert

    11175/8 Bearing Insert

    Inside Diameter: 15.88mm (5/8")
    Outside Diameter: 40mm
    Inner Width: 27.38mm
    Outer Width: 12mm
    Style: parallel outer and integral set screw lock Learn More
    Excl. VAT £12.59 Incl. VAT £15.11
  9. 1017-16G Bearing Insert

    1017-16G Bearing Insert

    Inside Diameter: 16mm
    Outside Diameter: 40mm
    Inner Width: 27.38mm
    Outer Width: 12mm
    Style: spherical outer and integral set screw lock Learn More
    Excl. VAT £12.59 Incl. VAT £15.11
  10. 1117-16 Bearing Insert

    1117-16 Bearing Insert

    Inside Diameter: 16mm
    Outside Diameter: 40mm
    Inner Width: 27.38mm
    Outer Width: 12mm
    Style: parallel outer and integral set screw lock Learn More
    Excl. VAT £12.59 Incl. VAT £15.11
  11. 1017-17G Bearing Insert

    1017-17G Bearing Insert

    Inside Diameter: 17mm
    Outside Diameter: 40mm
    Inner Width: 27.38mm
    Outer Width: 12mm
    Style: spherical outer and integral set screw lock Learn More
    Excl. VAT £12.59 Incl. VAT £15.11
  12. 1117-17 Bearing Insert

    1117-17 Bearing Insert

    Inside Diameter: 17mm
    Outside Diameter: 40mm
    Inner Width: 27.38mm
    Outer Width: 12mm
    Style: parallel outer and integral set screw lock Learn More
    Excl. VAT £0.00 Incl. VAT £0.00
  13. 1020-3/4G Bearing Insert

    1020-3/4G Bearing Insert

    Inside Diameter: 19.05mm (3/4")
    Outside Diameter: 47mm
    Inner Width: 31mm
    Outer Width: 14mm
    Style: spherical outer and integral set screw lock Learn More
    Excl. VAT £13.22 Incl. VAT £15.86
  14. 1020-3/4DECG Bearing Insert

    1020-3/4DECG Bearing Insert

    Inside Diameter: 19.05mm (3/4")
    Outside Diameter: 47mm
    Inner Width: 43.73mm
    Outer Width: 14mm
    Style: spherical outer and eccentric collar lock Learn More
    Excl. VAT £18.01 Incl. VAT £21.61
  15. 1120-3/4 Bearing Insert

    1120-3/4 Bearing Insert

    Inside Diameter: 19.05mm (3/4")
    Outside Diameter: 47mm
    Inner Width: 31mm
    Outer Width: 14mm
    Style: parallel outer and integral set screw lock Learn More
    Excl. VAT £13.22 Incl. VAT £15.86
  16. 1120-3/4DEC Bearing Insert

    1120-3/4DEC Bearing Insert

    Inside Diameter: 19.05mm (3/4")
    Outside Diameter: 47mm
    Inner Width: 43.73mm
    Outer Width: 14mm
    Style: parallel outer and eccentric collar lock Learn More
    Excl. VAT £18.01 Incl. VAT £21.61
  17. 1020-20G Bearing Insert

    1020-20G Bearing Insert

    Inside Diameter: 20mm
    Outside Diameter: 47mm
    Inner Width: 31mm
    Outer Width: 14mm
    Style: spherical outer and integral set screw lock Learn More
    Excl. VAT £12.59 Incl. VAT £15.11
  18. 1020-20DECG Bearing Insert

    1020-20DECG Bearing Insert

    Inside Diameter: 20mm
    Outside Diameter: 47mm
    Inner Width: 43.73mm
    Outer Width: 14mm
    Style: spherical outer and eccentric collar lock Learn More
    Excl. VAT £17.16 Incl. VAT £20.59
  19. 1120-20 Bearing Insert

    1120-20 Bearing Insert

    Inside Diameter: 20mm
    Outside Diameter: 47mm
    Inner Width: 31mm
    Outer Width: 14mm
    Style: parallel outer and integral set screw lock Learn More
    Excl. VAT £12.59 Incl. VAT £15.11
  20. 1120-20DEC Bearing Insert

    1120-20DEC Bearing Insert

    Inside Diameter: 20mm
    Outside Diameter: 47mm
    Inner Width: 43.73mm
    Outer Width: 14mm
    Style: parallel outer and eccentric collar lock Learn More
    Excl. VAT £16.35 Incl. VAT £19.62
  21. 1025-7/8G Bearing Insert

    1025-7/8G Bearing Insert

    Inside Diameter: 22.23mm (7/8")
    Outside Diameter: 52mm
    Inner Width: 34.1mm
    Outer Width: 15mm
    Style: spherical outer and integral set screw lock Learn More
    Excl. VAT £15.42 Incl. VAT £18.50
  22. 1025-7/8DECG Bearing Insert

    1025-7/8DECG Bearing Insert

    Inside Diameter: 22.23mm (7/8")
    Outside Diameter: 52mm
    Inner Width: 44.43mm
    Outer Width: 15mm
    Style: spherical outer and eccentric collar lock Learn More
    Excl. VAT £0.00 Incl. VAT £0.00
  23. 1125-7/8 Bearing Insert

    1125-7/8 Bearing Insert

    Inside Diameter: 22.23mm (7/8")
    Outside Diameter: 52mm
    Inner Width: 34.1mm
    Outer Width: 15mm
    Style: parallel outer and integral set screw lock Learn More
    Excl. VAT £15.42 Incl. VAT £18.50
  24. 1125-7/8DEC Bearing Insert

    1125-7/8DEC Bearing Insert

    Inside Diameter: 22.23mm (7/8")
    Outside Diameter: 52mm
    Inner Width: 44.43mm
    Outer Width: 15mm
    Style: parallel outer and eccentric collar lock Learn More
    Excl. VAT £0.00 Incl. VAT £0.00
  25. 1025-15/16DECG Bearing Insert

    1025-15/16DECG Bearing Insert

    Inside Diameter: 23.81mm (15/16")
    Outside Diameter: 52mm
    Inner Width: 44.43mm
    Outer Width: 15mm
    Style: spherical outer and eccentric collar lock Learn More
    Excl. VAT £0.00 Incl. VAT £0.00
