W3606000004
£64.08
£53.40
In stock
SKU
FT-W3606000004

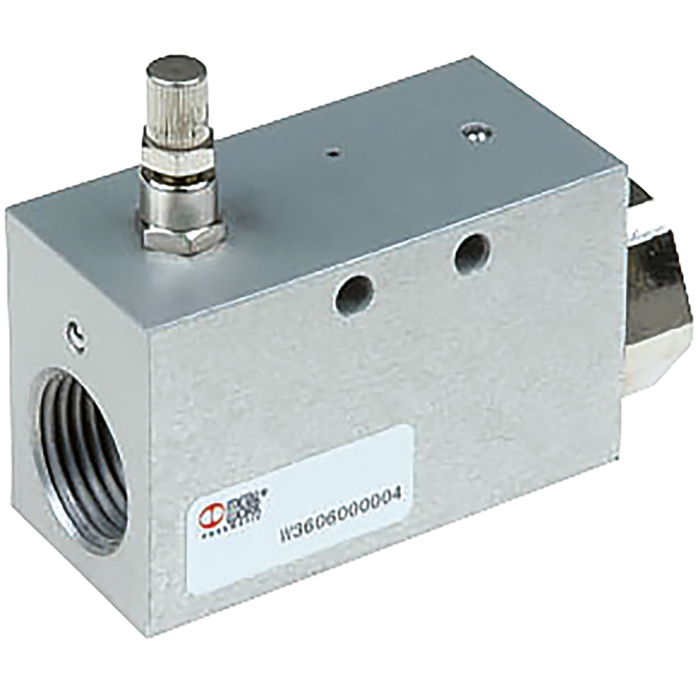

VAP 1/2 IN LINE PROGRESSIVE STARTER
VAP 1/2 IN LINE PROGRESSIVE STARTER
The in-line progressive starter is a valve that regulates the flow of air until the outlet pressure reaches a certain value, at which the valve opens and allows air to flow at full rate. This valve can be used to control a group of valves or a single valve, it can also be mounted between another valve and an actuator. The air that enters inlet 1 passes through a choke that has a knob adjustment to control the flow. The valve opens completely when the outlet pressure reaches about 60% of the inlet pressure. If the air supply is switched off, the valve discharges air from outlet 2 to inlet 1.
BearingShopUK holds a large stock of Pneumatics and Vacuum equipment, including the W3606000004 Range of Flow Control.
Please allow 3-4 days for delivery from our Fluid Power Branch.
Please view the below PDF for more information,
The in-line progressive starter is a valve that regulates the flow of air until the outlet pressure reaches a certain value, at which the valve opens and allows air to flow at full rate. This valve can be used to control a group of valves or a single valve, it can also be mounted between another valve and an actuator. The air that enters inlet 1 passes through a choke that has a knob adjustment to control the flow. The valve opens completely when the outlet pressure reaches about 60% of the inlet pressure. If the air supply is switched off, the valve discharges air from outlet 2 to inlet 1.
BearingShopUK holds a large stock of Pneumatics and Vacuum equipment, including the W3606000004 Range of Flow Control.
Please allow 3-4 days for delivery from our Fluid Power Branch.
Please view the below PDF for more information,
