W3501001211

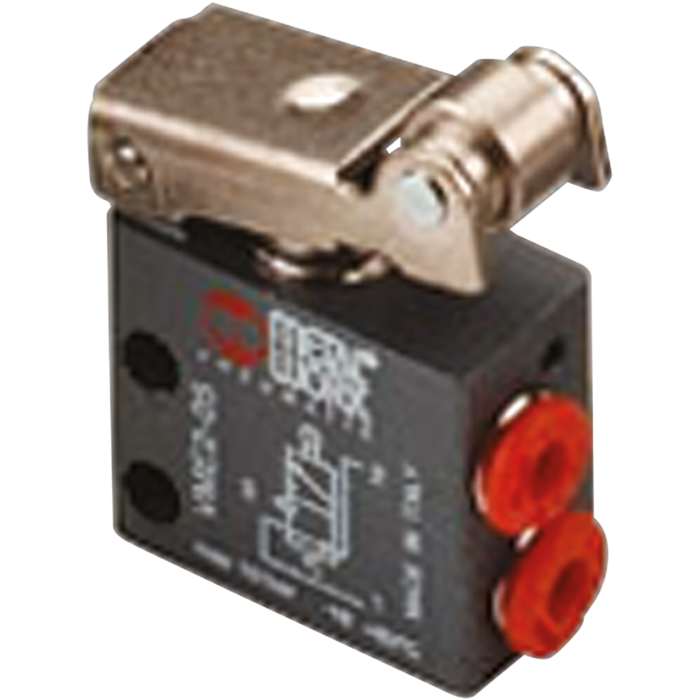

VME ROLLER VALVE M5 THREAD N/C SIDE
Valve fitting port: push-in fitting for pipe diameter, 4mm tube or M5 thread. Fluid: filtered air without lubrication. Lubrication, if used, must be continuos. Type: with poppet. Nominal Diameter: 2.5mm. Conductance C: 16.5 NI/min - bar. Critical ratio b:0.003 bar/bar. Flow rate at 6 bar P 0.5 bar: 35 NI/min. Flow rate at 6 bar P 1 bar: 60 NI/min. Actuation force, plunger at 6 bar: 8N. Recommended lubricant: ISO and UNI FD22. Installation: in any position.
BearingShopUK holds a large stock of Pneumatics and Vacuum equipment, including the W3501001211 Range of Trip Valve.

Please allow 3-4 days for delivery from our Fluid Power Branch.

Please view the below PDF for more information,
