VFH1.5051.012

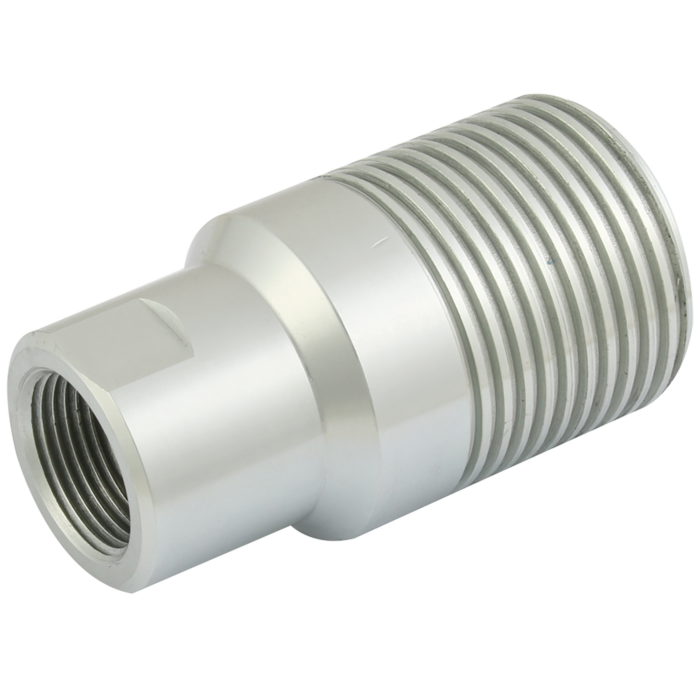

2" NPT Female Hydraulic Quick Release Coupling
Wing style screw to connect, 5,000 psi / 350 bar working pressure, Heavy duty design, High flow rate, Heavy duty acme threads. VFH1 series has a universal design that can be used in any industry, Used frequently in oilfield applications, Applications needing high working pressures and high flow rates, Oilfield services such as coiled tubing units, snubbing units, power swivels and much more. Interchangeability: Snap-Tite 75, Occlusion: poppet, Locking: screw, Material: steel, Steel Finishing: Zn-Fe (Cr III), Available Threads: NPT, Standard Seals: Nitrile, Optional Seals: Viton, EPDM, Connection Under Pressure: allowed (both male or female side), Maximum Residual Pressure: 100 bar
BearingShopUK holds a large stock of Hydraulic equipment, including the VFH1.5051.012 Range of Tipper Coupling.

Please allow 3-4 days for delivery from our Fluid Power Branch.

Please view the below PDF for more information,
TS20493
