STOPFUVARIES

Hose Retention System To Suit Large Plate

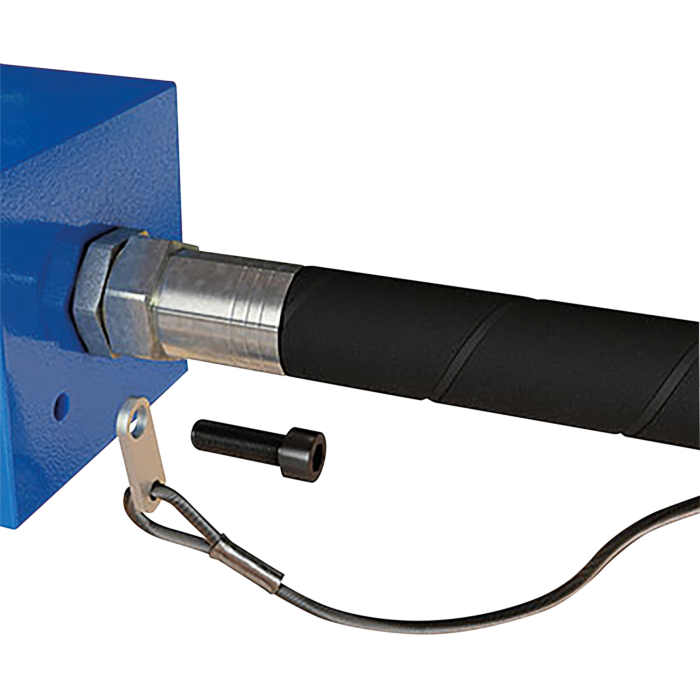

Safety Guarantee, The energy contained within a pressure hose, in case of disconnection from the fitting, can be very dangerous to anyone or anything in its vicinity. With the Stop flex retention system, the hose is secured to the plant by means of a cable, protecting both operators and components: Stop Flex arrests the trajectory of a disconnected flexible hose, avoiding 'whip effect'. User Flexibility Stop flex components can be applied to all kinds of flexible hoses. A band, equipped with a rubber gasket, remains perfectly secured, simultaneously allowing the hose to swell according to the working pressure. The retaining components can be secured to nipples, to SAE flanges or other system components. Tested Protection The Stop flex system, when mounted correctly, ensures the retention of the hose up to its maximum pressure in compliance with the following standards regulating the manufacture of hydraulic flexible hoses: EN 853 EN 854 EN 855 EN 856 EN 857 SAE J592
BearingShopUK holds a large stock of Hydraulic equipment, including the STOPFUVARIES Range of BSP and DIN.

Please allow 3-4 days for delivery from our Fluid Power Branch.

Please view the below PDF for more information,
TS60137
