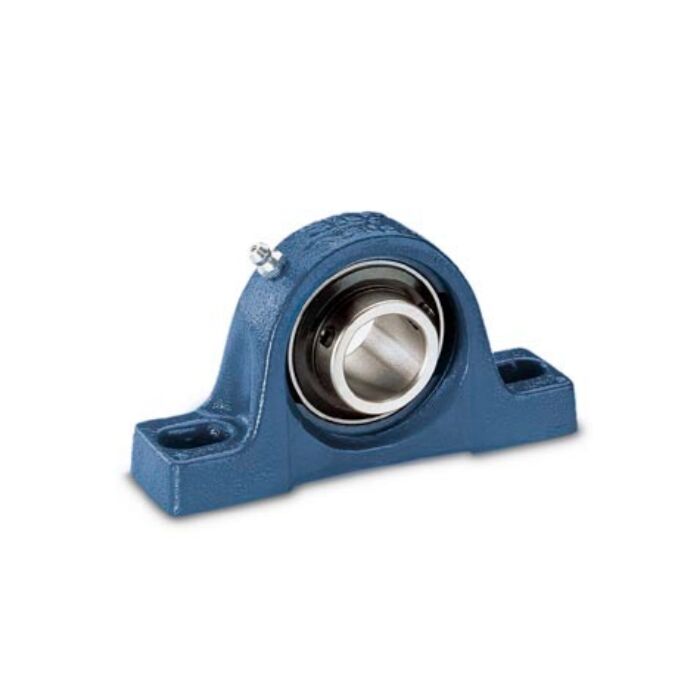

SKF SYH1.1/8WF 2 Bolt Pillow Block Bearing
£55.38
£46.15
In stock
SKU
SYH1.1/8WF
Bore Size: 1.1/8" (28.575mm)
Housing Length: 5.98" (152mm)
Housing Width: 1.57" (40mm)
Bolt Hole Centres: 4.63" (117.5mm)
Housing Length: 5.98" (152mm)
Housing Width: 1.57" (40mm)
Bolt Hole Centres: 4.63" (117.5mm)
SKF SYH1.1/8WF 1.1/8inch Bore Y-bearing Plummer Block - Cast Housing & Eccentric Locking Collar
Bolt Hole Dia (N): 0.93inch (23.5mm)
Bore Size (d): 1.1/8inch (28.575mm)
Bolt Hole Centres (J): 4.63inch (117.5mm)
Housing Length (L): 5.98inch (152mm)
Overall Height (H): 3.14inch (80mm)
Housing Width (A): 1.57inch (40mm)
Shaft Centre Height (H1): 1.56inch (39.7mm)
Limiting Speed: 6300r/min
Bolt Hole Dia (N): 0.93inch (23.5mm)
Bore Size (d): 1.1/8inch (28.575mm)
Bolt Hole Centres (J): 4.63inch (117.5mm)
Housing Length (L): 5.98inch (152mm)
Overall Height (H): 3.14inch (80mm)
Housing Width (A): 1.57inch (40mm)
Shaft Centre Height (H1): 1.56inch (39.7mm)
Limiting Speed: 6300r/min
