RM/92040/M/30

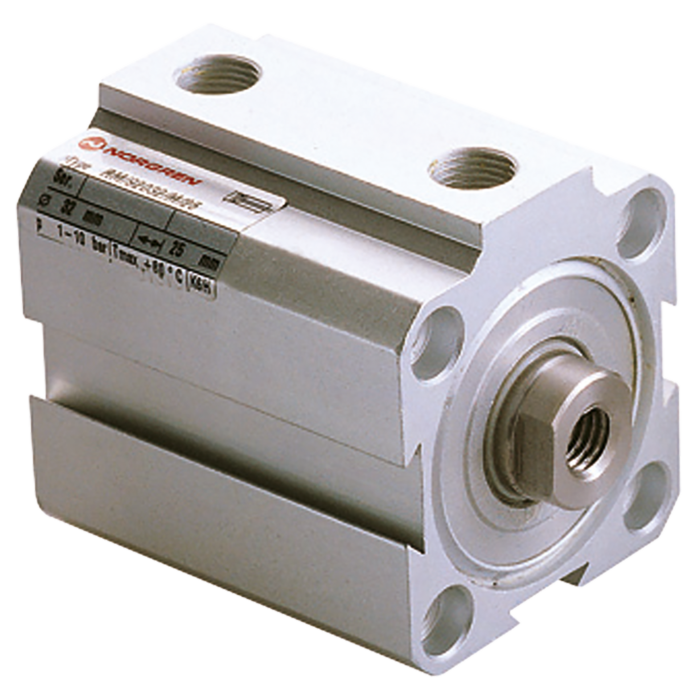

1/8" BSP Parallel Female Ports Double Acting RM/92000/M Compact Cylinder
One third the basic length of a corresponding VDMA/ISO model. Low friction, long life seal design. Fully non-corrodible specification. Non-lube operation. Optional non-rotating piston rod (non-rotating or guided piston rod on RM/92000/M). Standard magnetic piston for full control system versatility. Medium: Compressed air, filtered, lubricated or non-lubricated. Operation: RM/91000/M Single acting, non-cushioned, magnetic sprung in. RM/92000/M Double acting, buffer cushioning. Barrel & End Caps: Anodised aluminium alloy. Piston Rod: RM/91000/M Stainless steel (12 to 40mm austenitic). RM/92000/M Stainless steel (12 to 40mm austenitic, 50 to 100mm martensitic). Seals: Polyurethane and/or nitrile.
BearingShopUK holds a large stock of Pneumatics and Vacuum equipment, including the RM/92040/M/30 Range of Double Acting.

Please allow 3-4 days for delivery from our Fluid Power Branch.

Please view the below PDF for more information,
TS10362
