PLK4.3939.113

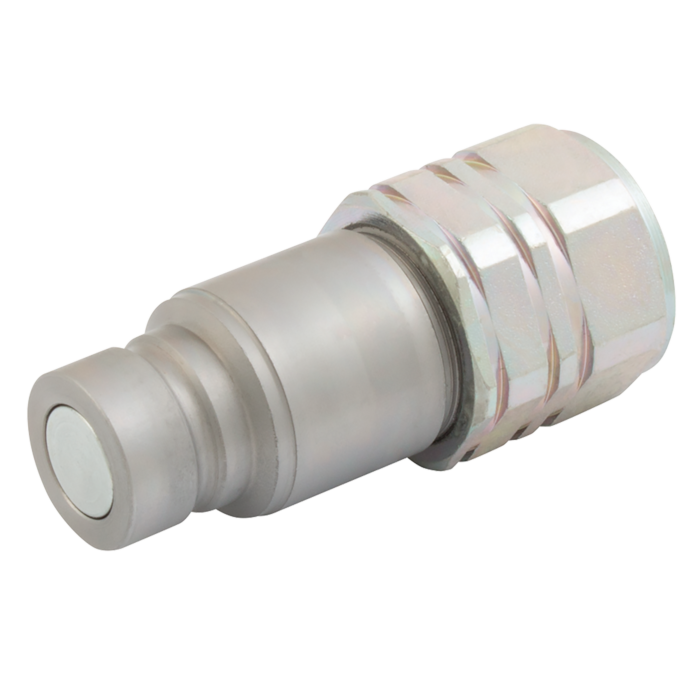

1.1/2" BSP Parallel Female Plug QRC
Interchanges with any ISO16028 quick disconnect, connect under pressure to 3,675 psi/250 bar, high pressure up to 5,800 psi/400 bar, flat face, non-spill design, high resistance steel. PLK4 series is ideal for systems that need to be connected under residual pressure, high pressure applications, attachments that may have trapped pressure in the system. Standard: ISO 16028, Occlusion: flat face, Locking: radial balls, Material: high resistance steel, Finishing: Zn-Fe (Cr III) and Zn-Ni, Available Threads: BSPP, NPT, SAE, metric, Standard Seals: Nitrile and PU, Optional Seals: Viton, EPDM, Connection Under Pressure: allowed (male side only), Maximum Residual Pressure: 250 bar
BearingShopUK holds a large stock of Hydraulic equipment, including the PLK4.3939.113 Range of Standard.

Please allow 3-4 days for delivery from our Fluid Power Branch.

Please view the below PDF for more information,
TS20482
