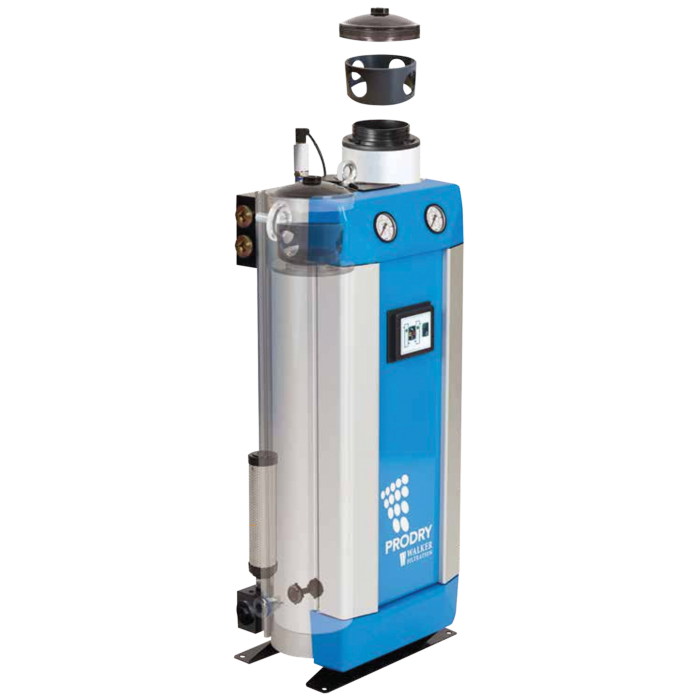

PD006

1/8" BSPP 5 um Filter 160 lpm
Technical Notes: 1. Models PD004 ﾖ PD035 supplied complete with XA (0.01 micron) pre-filter. 2. An appropriate Water Separator must be installed. If bulk water enters the adsorption dryer it can cause heat expansion to the desiccant, substantial rise in the dryer differential pressure, lead to poor outlet dew point and cause potential dryer failure. Dryer warranty will be deemed invalid if a high efficiency Water Separator with an efficient condensate drain is not used. 3. All dryer applications and sizing should be confirmed by Walker Filtration. Please contact nearest sales team for information on recommended sizing and air quality for your application need. 4. Models PD004 ﾖ PD035 feature easy removable desiccant cartridges with integral 1 micron Dust Filter. 5. For additional security, Walker Filtration recommends fitting an RX1 (1 micron) Dust Filter to the outlet. 6. High Performance Cartridges are required for applications where -70ﾰC/-94ﾰF dew points are required.
BearingShopUK holds a large stock of Compressed Air and Ring Main equipment, including the PD006 Range of Dryer.

Please allow 3-4 days for delivery from our Fluid Power Branch.

Please view the below PDF for more information,
