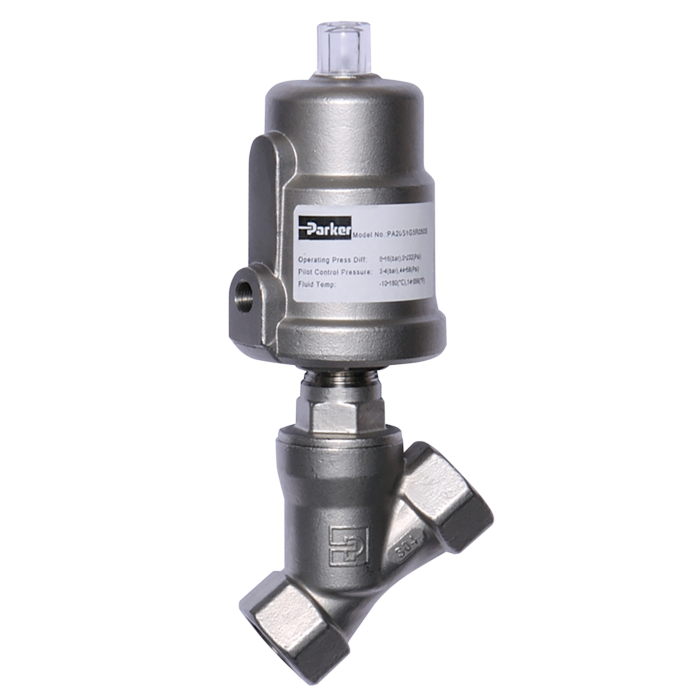

PA15SAG4R050S

1/2 ASV N/C FUS 304SSACT/316SSBOD AWH
An angle seat valve is actuated by a pneumatically driven piston and can handle slurry solutions with particles or corrosive solutions at high temperature up to +180ﾰC and operating pressure up to 16 Bar. Construction: Stainless steel actuator housing for exceptional durability in steam and aggressive applications. 304 stainless steel actuator and 316L stainless steel body. Benefits: Compact design, high flow rates. Visual position indicator. Working pressures up to 16 Bar. Dampened closing anti-water hammer design (fluid under seat). Mountable in any position. Tight shut-off and Long Service Life. Valves meeting Pressure Equipment Directive 97/23/EC. Conform to 94/9/CE directive specific to non-electrical equipment for use within potentially explosive environments - Zones 1/21 and 2/22. Applications: Food and beverage processing. Water technology and treatment. Textile Industry. Cooling systems on injection moulding machines. Pharmaceutical/cosmetic industry. Chemical process technology. Refrigeration and cooling/heat exchangers. Sterilizers steam supply. Water applications including mining, cement/concrete systems, pulp and paper. General industrial applications of aggressive fluids. Industrial laundry equipment. Industrial air dryers.
BearingShopUK holds a large stock of Process Valves and Instrumentation equipment, including the PA15SAG4R050S Range of Pneumatic Actuated Angle Seat Valve.

Please allow 3-4 days for delivery from our Fluid Power Branch.

Please view the below PDF for more information,
TS60414
