PA00S
£273.83
£228.19
In stock
SKU
FT-PA00S

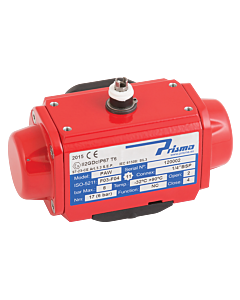

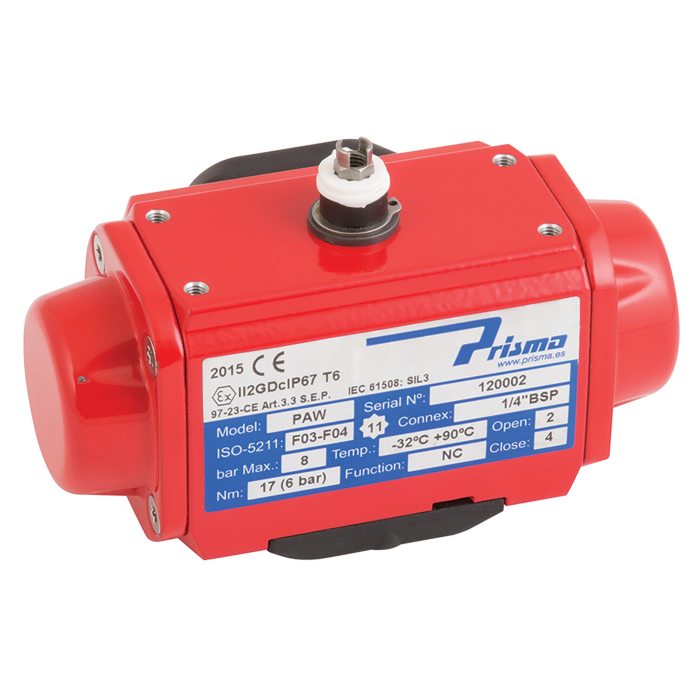

PRISMA PA00S SA ACTUATOR
PRISMA PA00S SA ACTUATOR
Features: 0-90ﾰ rotation angle to pilot ball, butterfly and plug valves.Double acting torques from 17 to 5043 Nm at 6 bar. Single acting torques from 6.7 to 1769 Nm end of spring. Rilsan and epoxy coated aluminium body. ATEX II 2G Ex h IIB T6 Gb / II 2D Ex h IIIC T80ﾰC Db certification. Suitable for use in a SIL safety loop. Conforms to ISO 5211, DIN 3337 and VDI/VDE 3845. NAMUR pneumatic connection for solenoid valve installation.
BearingShopUK holds a large stock of Process Valves and Instrumentation equipment, including the PA00S Range of Pneumatic Actuator.
Please allow 3-4 days for delivery from our Fluid Power Branch.
Please view the below PDF for more information,
Features: 0-90ﾰ rotation angle to pilot ball, butterfly and plug valves.Double acting torques from 17 to 5043 Nm at 6 bar. Single acting torques from 6.7 to 1769 Nm end of spring. Rilsan and epoxy coated aluminium body. ATEX II 2G Ex h IIB T6 Gb / II 2D Ex h IIIC T80ﾰC Db certification. Suitable for use in a SIL safety loop. Conforms to ISO 5211, DIN 3337 and VDI/VDE 3845. NAMUR pneumatic connection for solenoid valve installation.
BearingShopUK holds a large stock of Process Valves and Instrumentation equipment, including the PA00S Range of Pneumatic Actuator.
Please allow 3-4 days for delivery from our Fluid Power Branch.
Please view the below PDF for more information,
