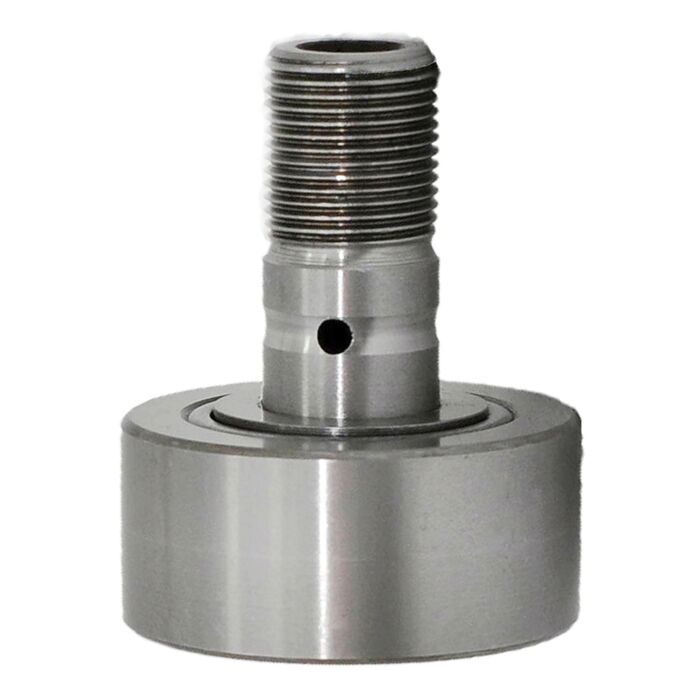

Cam followers are specialised needle type bearings designed to follow cam lobe profiles. They are similar in operation to a standard bearing, but instead of an inner race they have a solid stud mount.

Needle type cam followers can achieve high speeds but havelimited axial and thrust load capacities. For higher loads, roller elements can be used instead.

D= 90
C= 35
d= 35
B= 100
B1= 63
B2= -
C1= 1
d1= 47
G= M30x1.5
G1= 32
M1= -
r min= 1.1
SW= 14
Eccentric Collar c= 1.5
B3= 29
Dynamic Load N= 78100
Static Load N= 102000
Fatigue Load Limit Pu= 12700
Radial Dynamic Load N= 86500
Radial Static Load N= 125000
Speed Rating rpm= 1800
Weight g= 2020
