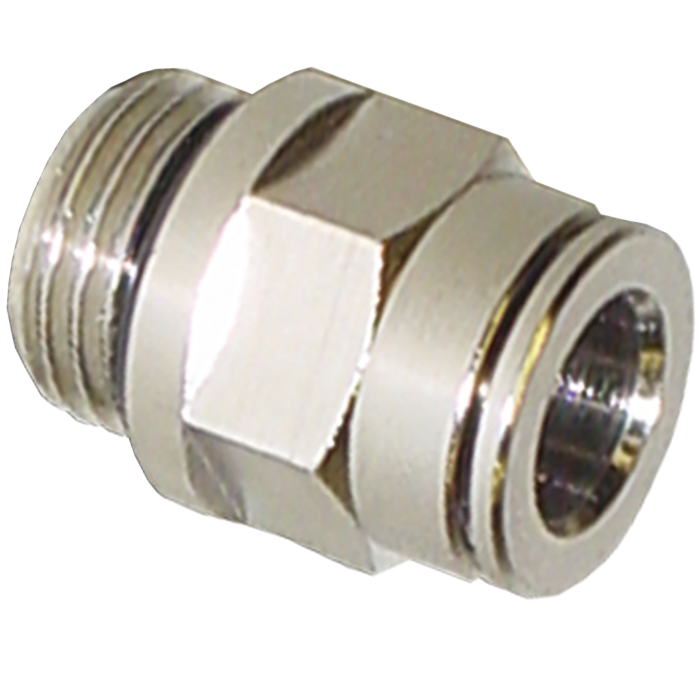

MA120418

MALE STUD 4MM TO G1/8 THREAD
The MA range is our ﾂ"Automatic push-in fittingﾂ" line. It enables quick connections with calibrated plastic hoses at any time, at any stage of the pneumatic circuit and by a simple hand movement. The connection and the fitting tightness are made possible by the presence of the stainless steel grip and of an O-ring inside the fitting so that once the tube is inserted to the bottom of the fitting, the stainless collet grips onto it and prevents it from being released. The tube disconnection is then possible by pushing onto the outer metal ring, called release ring. All MA fittings are brass nickel plated. Vacuum: up to 750 mmHg. The push-in fittings of the MA line are completely made of brass and they are suitable for quick connections in different industrial applications; they are robust, compact and guarantee high performances in time.
BearingShopUK holds a large stock of Pneumatics and Vacuum equipment, including the MA120418 Range of Male Stud.

Please allow 3-4 days for delivery from our Fluid Power Branch.

Please view the below PDF for more information,
