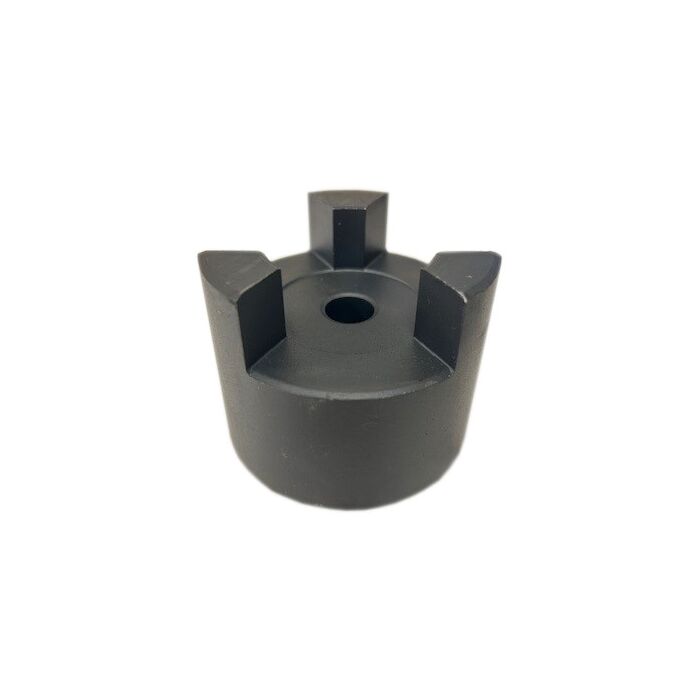

L035 Jaw Coupling Complete
£7.31
£6.09
In stock
SKU
35547
Overall Diameter: 16mm
Assembled Length: 20mm
Hub Diameter: 16mm
Set Screw Size: M3
Assembled Length: 20mm
Hub Diameter: 16mm
Set Screw Size: M3
PLEASE NOTE: Machining service takes 1-2 weeks to complete before dispatch.
A jaw coupling is a type of motion control (servo) coupling designed to transmit torque by connecting two shafts while damping system vibrations, which protects other components from damage. Jaw couplings are composed of three parts including two metallic hubs and an elastomer insert called an element, but commonly referred to as a "spider".
seperatorA jaw coupling is a type of motion control (servo) coupling designed to transmit torque by connecting two shafts while damping system vibrations, which protects other components from damage. Jaw couplings are composed of three parts including two metallic hubs and an elastomer insert called an element, but commonly referred to as a "spider".
Technical Dimensions
| Nominal Torque (Nm) | . |
| Maximum Speed rev/min | 31000 |
| Pilot Bore (A) | 3 |
| Maximum Bore (A) | 8 |
| Overall Diameter (B) | 16 |
| Assembled Length(L) | 20 |
| Hub Width (C) | 7 |
| Hub Diameter (D) | 16 |
| Set Screw Position (F) | 3 |
| Set Screw Size | M3 |
