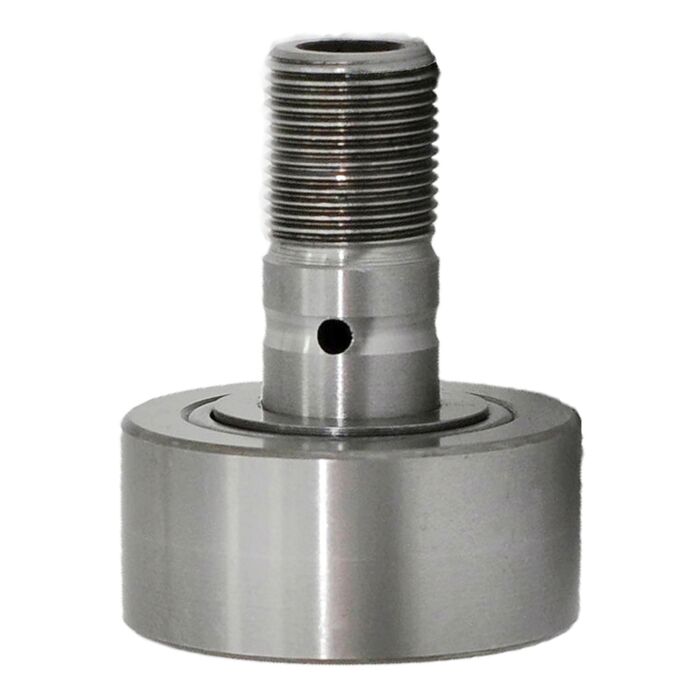

KRV62PPA Cam Follower
£96.88
£80.73
In stock
SKU
CF-23822
InsideDiameter:
24mm
OutsideDiameter: 62mm
Width: 29mm
OutsideDiameter: 62mm
Width: 29mm
Cam followers are specialised needle type bearings designed to follow cam lobe profiles. They are similar in operation to a standard bearing, but instead of an inner race they have a solid stud mount.
Needle type cam followers can achieve high speeds but havelimited axial and thrust load capacities. For higher loads, roller elements can be used instead.
D= 62
C= 29
d= 24
B= 80
B1= 49.5
B2= 11
C1= 0.8
d1= 44
G= M24x1.5
G1= 25
M= -
M1= 4
r min= 1
SW= 14
Eccentric Collar c= -
B3= -
Dynamic Load N= 31400
Static Load N= 72000
Fatigue Load Limit Pu= 9000
Radial Dynamic Load N= 72000
Radial Static Load N= 102000
Speed Rating rpm= 1100
Weight g= 790
Needle type cam followers can achieve high speeds but havelimited axial and thrust load capacities. For higher loads, roller elements can be used instead.
D= 62
C= 29
d= 24
B= 80
B1= 49.5
B2= 11
C1= 0.8
d1= 44
G= M24x1.5
G1= 25
M= -
M1= 4
r min= 1
SW= 14
Eccentric Collar c= -
B3= -
Dynamic Load N= 31400
Static Load N= 72000
Fatigue Load Limit Pu= 9000
Radial Dynamic Load N= 72000
Radial Static Load N= 102000
Speed Rating rpm= 1100
Weight g= 790
