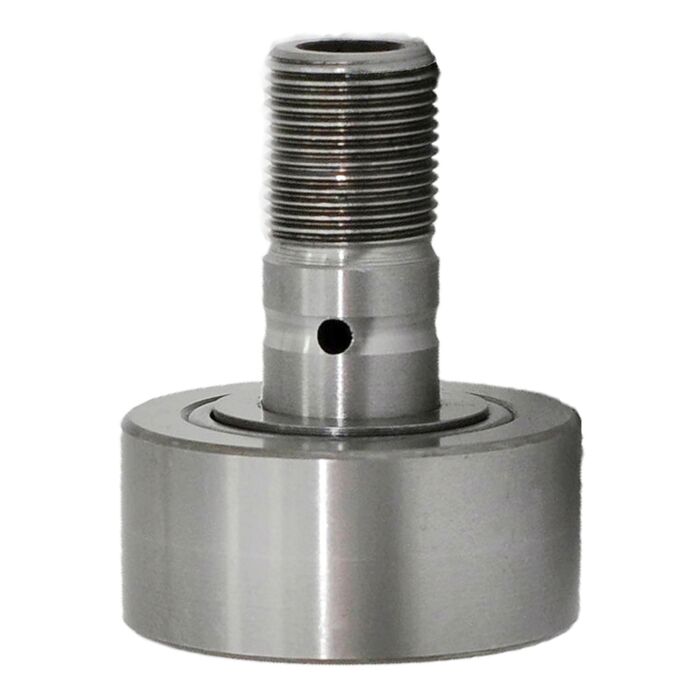

KRE32PPA Cam Follower
£60.67
£50.56
In stock
SKU
CF-23676
InsideDiameter:
15mm
OutsideDiameter: 32mm
Width: 14mm
OutsideDiameter: 32mm
Width: 14mm
Cam followers are specialised needle type bearings designed to follow cam lobe profiles. They are similar in operation to a standard bearing, but instead of an inner race they have a solid stud mount.
Needle type cam followers can achieve high speeds but havelimited axial and thrust load capacities. For higher loads, roller elements can be used instead.
D= 32
C= 14
d= 15
B= 40
B1= 25
B2= -
C1= 0.6
d1= 23
G= M12x1.5
G1= 13
M= -
M1= -
r min= 0.6
SW= 6
Eccentric Collar c= 0.5
B3= 11
Dynamic Load N= 6710
Static Load N= 8500
Fatigue Load Limit Pu= 950
Radial Dynamic Load N= 10600
Radial Static Load N= 15000
Speed Rating rpm= 1550
Weight g= 100
Needle type cam followers can achieve high speeds but havelimited axial and thrust load capacities. For higher loads, roller elements can be used instead.
D= 32
C= 14
d= 15
B= 40
B1= 25
B2= -
C1= 0.6
d1= 23
G= M12x1.5
G1= 13
M= -
M1= -
r min= 0.6
SW= 6
Eccentric Collar c= 0.5
B3= 11
Dynamic Load N= 6710
Static Load N= 8500
Fatigue Load Limit Pu= 950
Radial Dynamic Load N= 10600
Radial Static Load N= 15000
Speed Rating rpm= 1550
Weight g= 100
