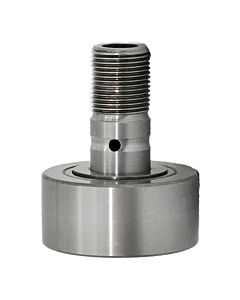

KR22PPA Cam Follower
£35.21
£29.34
In stock
SKU
CF-23506
InsideDiameter:
10mm
OutsideDiameter: 22mm
Width: 12mm
OutsideDiameter: 22mm
Width: 12mm
Cam followers are specialised needle type bearings designed to follow cam lobe profiles. They are similar in operation to a standard bearing, but instead of an inner race they have a solid stud mount.
Needle type cam followers can achieve high speeds but havelimited axial and thrust load capacities. For higher loads, roller elements can be used instead.
D= 22
C= 12
d= 10
B= 36
B1= 23
C1= 0.6
d1= 17.5
G= M10x1
G1= 12
M= -
r min= 0.3
SW= 5
Eccentric Collar c= -
B3= -
Dynamic Load N= 4400
Static Load N= 5000
Fatigue Load Limit Pu= 560
Radial Dynamic Load N= 4250
Radial Static Load N= 6000
Speed Rating rpm= 8000
Weight g= 43
Needle type cam followers can achieve high speeds but havelimited axial and thrust load capacities. For higher loads, roller elements can be used instead.
D= 22
C= 12
d= 10
B= 36
B1= 23
C1= 0.6
d1= 17.5
G= M10x1
G1= 12
M= -
r min= 0.3
SW= 5
Eccentric Collar c= -
B3= -
Dynamic Load N= 4400
Static Load N= 5000
Fatigue Load Limit Pu= 560
Radial Dynamic Load N= 4250
Radial Static Load N= 6000
Speed Rating rpm= 8000
Weight g= 43
