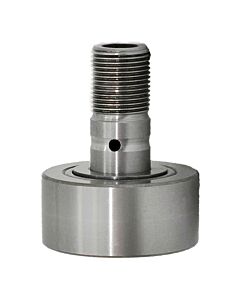

KR19PPSKA Budget Cam Follower
£23.20
£19.33
In stock
SKU
CF-23492
InsideDiameter:
8mm
OutsideDiameter: 19mm
Width: 11mm
OutsideDiameter: 19mm
Width: 11mm
Cam followers are specialised needle type bearings designed to follow cam lobe profiles. They are similar in operation to a standard bearing, but instead of an inner race they have a solid stud mount.
Needle type cam followers can achieve high speeds but havelimited axial and thrust load capacities. For higher loads, roller elements can be used instead.
D= 19
C= 11
d= 8
B= 32
B1= 20
C1= 0.6
d1= 15
G= M8
G1= 10
M= -
r min= 0.15
SW= 4
Eccentric Collar c= -
B3= -
Dynamic Load N= 3470
Static Load N= 3800
Fatigue Load Limit Pu= 415
Radial Dynamic Load N= 3800
Radial Static Load N= 5500
Speed Rating rpm= 11000
Weight g= 29
Needle type cam followers can achieve high speeds but havelimited axial and thrust load capacities. For higher loads, roller elements can be used instead.
D= 19
C= 11
d= 8
B= 32
B1= 20
C1= 0.6
d1= 15
G= M8
G1= 10
M= -
r min= 0.15
SW= 4
Eccentric Collar c= -
B3= -
Dynamic Load N= 3470
Static Load N= 3800
Fatigue Load Limit Pu= 415
Radial Dynamic Load N= 3800
Radial Static Load N= 5500
Speed Rating rpm= 11000
Weight g= 29
