HUKNAM110VAC
£39.92
£33.27
In stock
SKU
FT-HUKNAM110VAC

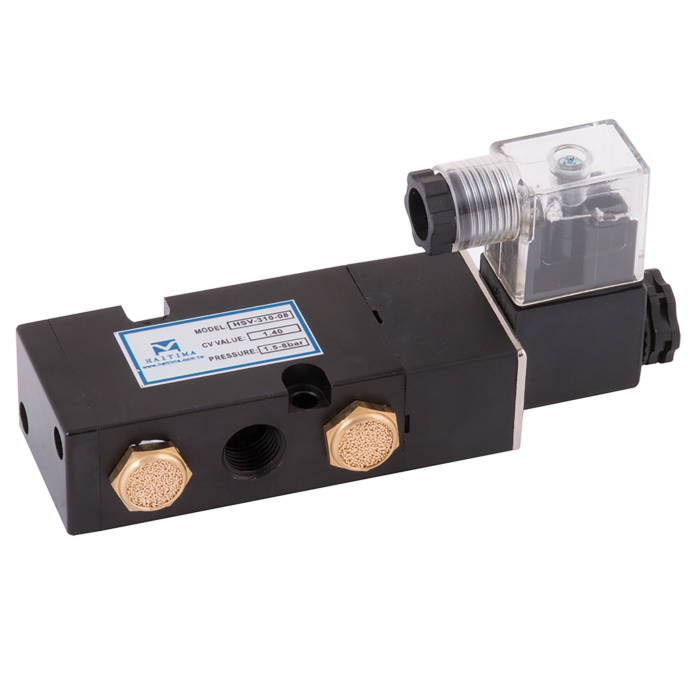

110VAC NAMUR MOUNT SOLENOID VALVE
110VAC NAMUR MOUNT SOLENOID VALVE
Features: For use with compressed air. Internally piloted. Anodised aluminium alloy body. Suitable for single and double acting pneumatic actuators. 5 port 2 position. Manual override. NAMUR and VDI/VDE 3845 standard interface for direct mounting to pneumatic actuators. 1/4" BSPP inlet and exhaust ports. Insulation class F. LED DIN plug. For safe area use only. Flow rate 30kg/mm2 (Cv=1.68). Voltage tolerance ﾱ 10%. Response time 0.05 seconds. Terminal DIN 43650B. IP65 rated. Maximum frequency is 5 cycles per second.
BearingShopUK holds a large stock of Process Valves and Instrumentation equipment, including the HUKNAM110VAC Range of Pilot Accessories.
Please allow 3-4 days for delivery from our Fluid Power Branch.
Please view the below PDF for more information,
Features: For use with compressed air. Internally piloted. Anodised aluminium alloy body. Suitable for single and double acting pneumatic actuators. 5 port 2 position. Manual override. NAMUR and VDI/VDE 3845 standard interface for direct mounting to pneumatic actuators. 1/4" BSPP inlet and exhaust ports. Insulation class F. LED DIN plug. For safe area use only. Flow rate 30kg/mm2 (Cv=1.68). Voltage tolerance ﾱ 10%. Response time 0.05 seconds. Terminal DIN 43650B. IP65 rated. Maximum frequency is 5 cycles per second.
BearingShopUK holds a large stock of Process Valves and Instrumentation equipment, including the HUKNAM110VAC Range of Pilot Accessories.
Please allow 3-4 days for delivery from our Fluid Power Branch.
Please view the below PDF for more information,
