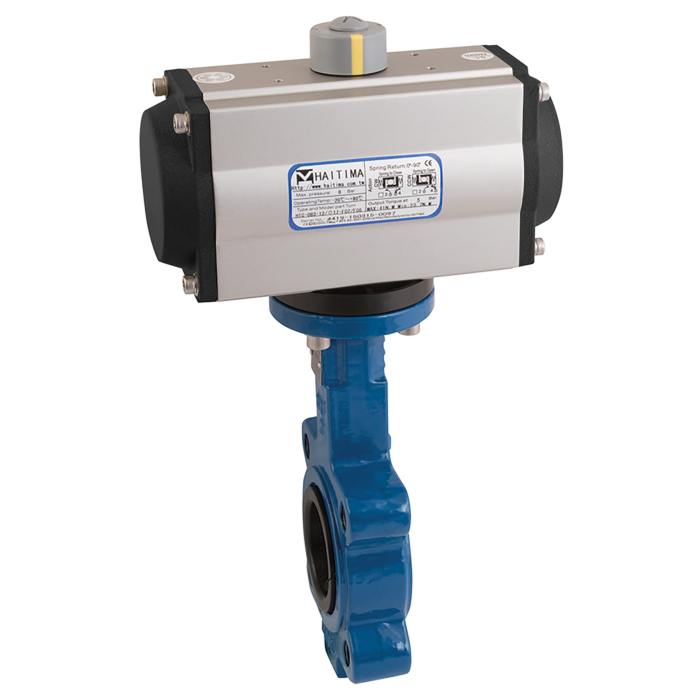

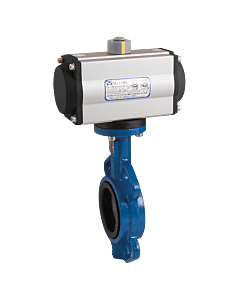

5" PN16 L+T BFLY SS/SS/NBR HAIT DA ACT
Features: Lugged and tapped butterfly valve to suit PN16 flanges. Other size flanges are available on request . Available in ductile iron, carbon steel or stainless steel body. Stainless steel, ductile iron ENP and aluminium bronze disc options available. Liners available in EPDM, NBR, PTFE on silicone or FPM. WRAS approved valve option available (2014LA). Haitima aluminium pneumatic actuator. Sized based on 10 bar pilot air and wet non-abrasive duty at +80ﾰC.
BearingShopUK holds a large stock of Process Valves and Instrumentation equipment, including the HDA 2014LT 13 Range of Pneumatic Actuated Butterfly Valve.

Please allow 3-4 days for delivery from our Fluid Power Branch.

Please view the below PDF for more information,
