FPM22B08CNFA03XX

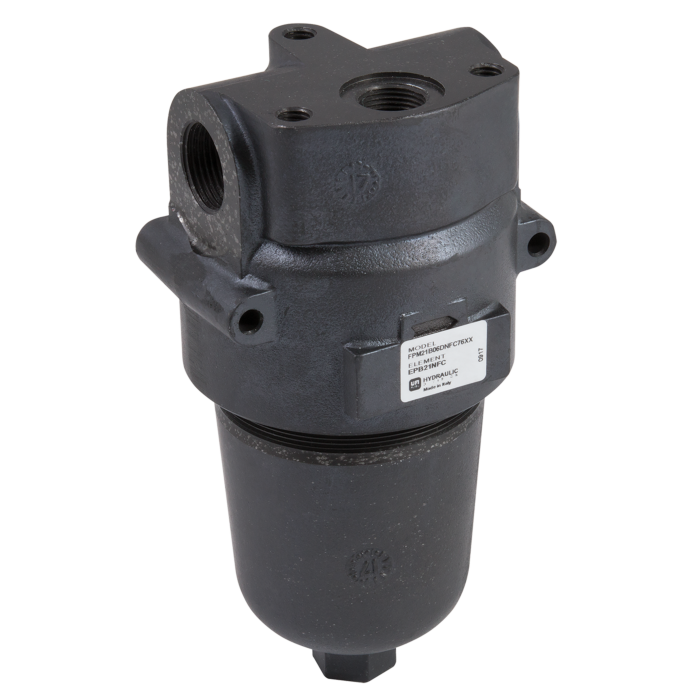

1" BSP FemaleHigh Pressure Filtration PM Series Filter
The UFI Hydraulic Division pressure filters are named ﾑCOMPO CAREﾒ because they take care of system components, ensuring the recommended cleanliness levels. Filter elements are manufactured from glass fibre and cellulose media. Materials, Housing: Anodized aluminium alloy, Bypass valve: Steel, Seals: Nitrile (Viton - on request fluoroelastomer), Indicator housing: Brass. Compatibility (ISO 2943:1999) Full with fluids: HH-HL-HM-HV-HTG (according to ISO 6743/4) Pressure (ISO 10771-1:2002). Max. working: 21 MPa (210 bar). Test: 33 MPa (330 bar). Bursting: 66 MPa (660 bar). Collapse, differential for the filter element (ISO 2941): 2,1 MPa (21 bar)
BearingShopUK holds a large stock of Hydraulic equipment, including the FPM22B08CNFA03XX Range of Pressure.

Please allow 3-4 days for delivery from our Fluid Power Branch.

Please view the below PDF for more information,
TS68075
