EE-MI326-112
£35.96
£29.97
In stock
SKU
FT-EE-MI326-112

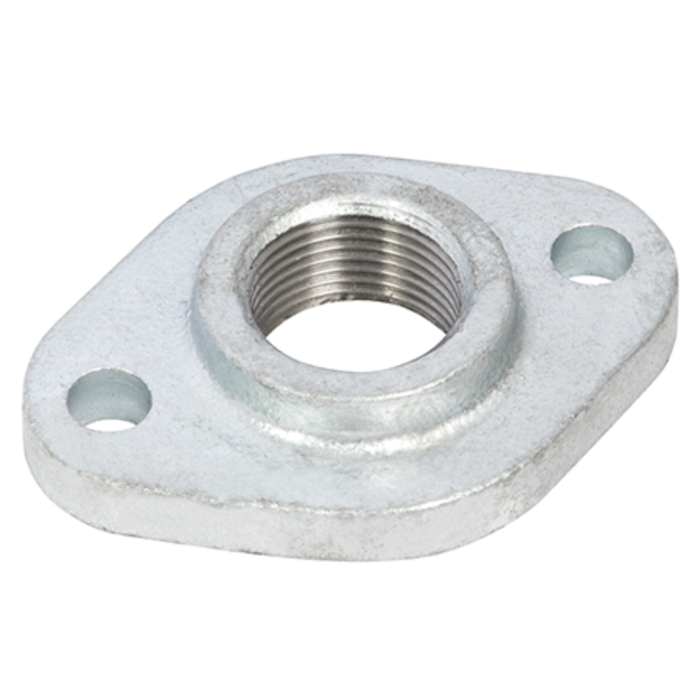

Galv Screwed Flange with 2 bolt holes 1.1/2" BSP
Galv Screwed Flange with 2 bolt holes 1.1/2" BSP
Threads: Threads are in accordance to IS07-1. All male threads are BSPT and female threads are BSPP. Materials: Whiteheart malleable EN-GJMW-400-5 cast iron, grade W40-05 according to ISO5922/DIN-1692, and tested in accordance to EN 10242. Media: Suitable for the flow of water, steam, gas or other non aggressive media. Surface Finishing: Two types are available: Black: With an anti-corrosive varnish to protect against rust after installation prior to plant conditioning. Galvanised: According to EN 10242, zinc coating weight relative to surface exceeds 500 gr/mﾲ (average layer thickness 70 micron)
BearingShopUK holds a large stock of Compressed Air and Ring Main equipment, including the EE-MI326-112 Range of Flange.
Please allow 3-4 days for delivery from our Fluid Power Branch.
Please view the below PDF for more information,
Threads: Threads are in accordance to IS07-1. All male threads are BSPT and female threads are BSPP. Materials: Whiteheart malleable EN-GJMW-400-5 cast iron, grade W40-05 according to ISO5922/DIN-1692, and tested in accordance to EN 10242. Media: Suitable for the flow of water, steam, gas or other non aggressive media. Surface Finishing: Two types are available: Black: With an anti-corrosive varnish to protect against rust after installation prior to plant conditioning. Galvanised: According to EN 10242, zinc coating weight relative to surface exceeds 500 gr/mﾲ (average layer thickness 70 micron)
BearingShopUK holds a large stock of Compressed Air and Ring Main equipment, including the EE-MI326-112 Range of Flange.
Please allow 3-4 days for delivery from our Fluid Power Branch.
Please view the below PDF for more information,
