E30850SR
£683.16
£569.30
In stock
SKU
FT-E30850SR

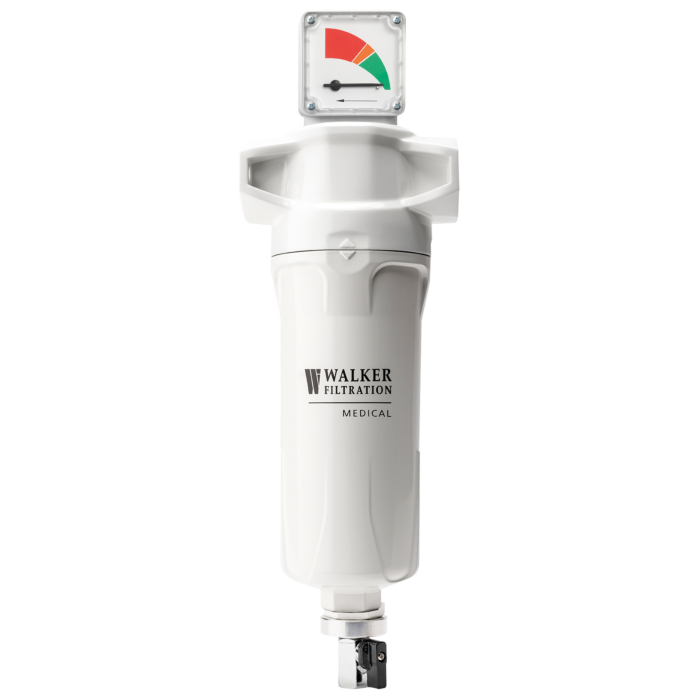

0.01 UM MEDICAL STERILE FILTER ELEMENT
0.01 UM MEDICAL STERILE FILTER ELEMENT
Technical Notes: 1. Filter element end caps are stainless steel. 2. Direction of air flow is outside to in through the filter element. 3. Pop up indicators (65DPUG3) are fitted to models A30025MS to A30050MS as standard. Differential pressure indicators (65DPIG) are fitted to models A30070MS to A31500MS as standard. 4. Manual drain valves (MDV25 on models A30015MS to A30050MS and MDVE25 on models A30070MS to A31500MS) are fitted as standard. 5. Medical Sterile Filter elements must not operate in water or oil saturated conditions. 6. Maximum steam sterilising autoclave temperature refers to the filter element ONLY. Grade SR filter elements can be steam sterilised 100 times. Each element must be autoclaved before commencement of duty. 7. Pre-filtration should be used in conjunction with 0.01 micron sterile filters. 8. Threaded filters are manufactured from cast aluminium alloy and are PED 2014/68/EU compliant for group 2 gases. 9. Standard threaded connections are Rp (BSP Parallel) to ISO 7-1 or NPT to ANSI/ASME B1.20.1 if supplied within North America. Rc (BSP Taper) to ISO 7-1 also available. 10. For NPT threads, add the suffix N, e.g., A30070NMS, and for Rc threads add the suffix C, e.g. A30070CMS. 11. Filter elements should be changed at least every 6 months. 12. Filters are suitable for use in dry air conditions only, as any liquids passings through the filter could carry bacteria and compromise sterility.
BearingShopUK holds a large stock of Compressed Air and Ring Main equipment, including the E30850SR Range of Element.
Please allow 3-4 days for delivery from our Fluid Power Branch.
Please view the below PDF for more information,
Technical Notes: 1. Filter element end caps are stainless steel. 2. Direction of air flow is outside to in through the filter element. 3. Pop up indicators (65DPUG3) are fitted to models A30025MS to A30050MS as standard. Differential pressure indicators (65DPIG) are fitted to models A30070MS to A31500MS as standard. 4. Manual drain valves (MDV25 on models A30015MS to A30050MS and MDVE25 on models A30070MS to A31500MS) are fitted as standard. 5. Medical Sterile Filter elements must not operate in water or oil saturated conditions. 6. Maximum steam sterilising autoclave temperature refers to the filter element ONLY. Grade SR filter elements can be steam sterilised 100 times. Each element must be autoclaved before commencement of duty. 7. Pre-filtration should be used in conjunction with 0.01 micron sterile filters. 8. Threaded filters are manufactured from cast aluminium alloy and are PED 2014/68/EU compliant for group 2 gases. 9. Standard threaded connections are Rp (BSP Parallel) to ISO 7-1 or NPT to ANSI/ASME B1.20.1 if supplied within North America. Rc (BSP Taper) to ISO 7-1 also available. 10. For NPT threads, add the suffix N, e.g., A30070NMS, and for Rc threads add the suffix C, e.g. A30070CMS. 11. Filter elements should be changed at least every 6 months. 12. Filters are suitable for use in dry air conditions only, as any liquids passings through the filter could carry bacteria and compromise sterility.
BearingShopUK holds a large stock of Compressed Air and Ring Main equipment, including the E30850SR Range of Element.
Please allow 3-4 days for delivery from our Fluid Power Branch.
Please view the below PDF for more information,
