E30612X1
£99.46
£82.88
In stock
SKU
FT-E30612X1

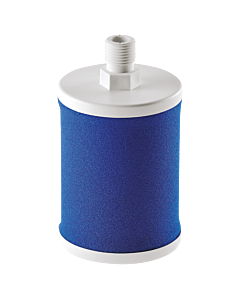

1 um Filter Element
1 um Filter Element
Technical Notes: 1. Direction of air flow is inside to out through the filter element. 2. Pop up indicators (65DPUG3) are fitted to models A30025 to A30050 as standard. Differential pressure indicators (65DPIG) are fitted to models A30070 to A31500 as standard. Activated Carbon (AC) grade filters do not include DP equipment. Volt free contact options are available upon request. 3. Coalescing Filters are fitted as standard with normally open float operated automatic drain valves, ADVS16 on models A30006 to A30050 ADVSE16 on models A30070 to A31500. Standard filters can operate at 16 barg (232 psig) at 80ﾰC (176ﾰF). Normally closed automatic drain valves (ADVS16C) are available for low flow applications. 20.7 bar range (300 psi) at 120ﾰC (248ﾰF) available when supplied with a manual drain valve (MDV25 / MDVE25). 4. Activated Carbon Filters must not operate in oil saturated conditions and will not remove certain types of gases including carbon monoxide (CO) and carbon dioxide (CO2). 5. New Alpha Filters are manufactured from cast aluminium alloy and are PED 2014/68/EU compliant for group 2 gases. 6. Threaded connections are Rp (BSP Parallel) to ISO 7-1 or NPT to ANSI/ASME B1.20.1 if supplied within North America. Rc (BSP Taper) to ISO 7-1 also available. 7. For NPT threads, add the suffix N, e.g., A30070NXA, and for Rc threads add the suffix C, e.g. A30070CXA. 8. Filters are suitable for use with mineral and synthetic oils plus, oil-free compressed air applications.
BearingShopUK holds a large stock of Compressed Air and Ring Main equipment, including the E30612X1 Range of Element.
Please allow 3-4 days for delivery from our Fluid Power Branch.
Please view the below PDF for more information,
Technical Notes: 1. Direction of air flow is inside to out through the filter element. 2. Pop up indicators (65DPUG3) are fitted to models A30025 to A30050 as standard. Differential pressure indicators (65DPIG) are fitted to models A30070 to A31500 as standard. Activated Carbon (AC) grade filters do not include DP equipment. Volt free contact options are available upon request. 3. Coalescing Filters are fitted as standard with normally open float operated automatic drain valves, ADVS16 on models A30006 to A30050 ADVSE16 on models A30070 to A31500. Standard filters can operate at 16 barg (232 psig) at 80ﾰC (176ﾰF). Normally closed automatic drain valves (ADVS16C) are available for low flow applications. 20.7 bar range (300 psi) at 120ﾰC (248ﾰF) available when supplied with a manual drain valve (MDV25 / MDVE25). 4. Activated Carbon Filters must not operate in oil saturated conditions and will not remove certain types of gases including carbon monoxide (CO) and carbon dioxide (CO2). 5. New Alpha Filters are manufactured from cast aluminium alloy and are PED 2014/68/EU compliant for group 2 gases. 6. Threaded connections are Rp (BSP Parallel) to ISO 7-1 or NPT to ANSI/ASME B1.20.1 if supplied within North America. Rc (BSP Taper) to ISO 7-1 also available. 7. For NPT threads, add the suffix N, e.g., A30070NXA, and for Rc threads add the suffix C, e.g. A30070CXA. 8. Filters are suitable for use with mineral and synthetic oils plus, oil-free compressed air applications.
BearingShopUK holds a large stock of Compressed Air and Ring Main equipment, including the E30612X1 Range of Element.
Please allow 3-4 days for delivery from our Fluid Power Branch.
Please view the below PDF for more information,
