Jaw Couplings

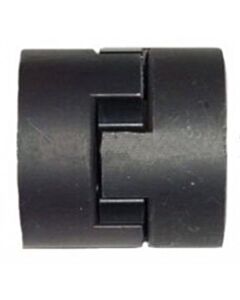

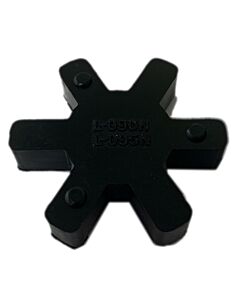

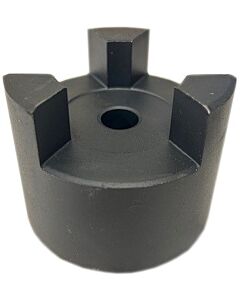

A jaw coupling is a type of motion control coupling that is designed to transmit force, while damping vibratory motions. A jaw coupling has three parts: two metallic hubs and an elastomer insert or spiders. The performance of a jaw coupling can be customised according to requirements. The spiders are available in three durometers; the 85 shore A for maximum dampening, the 92 Shore A for balanced dampening and the 98 Shore A for a small amount of dampening. Jaw couplings also allow the inch and metric hubs to be easily combined to form a single coupling.
Jaw couplings and their significant parts are available at Bearing Shop UK. To order call us now on telephone number 08000 096 098.
Our other products include Loctite 577, bearings, v pulleys and much more.
-
Overall Diameter: 16mm
Assembled Length: 20mm
Hub Diameter: 16mm
Set Screw Size: M3
Learn More
-
Overall Diameter: 16mm
Assembled Length: 20mm
Hub Diameter: 16mm
Set Screw Size: M3
Learn More
-
Overall Diameter: 27.5mm
Assembled Length: 44mm
Hub Diameter: 27.5mm
Set Screw Size: M6
Learn More
-
Overall Diameter: 27.5mm
Assembled Length: 44mm
Hub Diameter: 27.5mm
Set Screw Size: M6
Learn More
-
Overall Diameter: 35 Assembled Length: 51 Hub Diameter: 35 Set Screw Size: M6
Learn More
-
Overall Diameter: 35 Assembled Length: 51 Hub Diameter: 35 Set Screw Size: M6
Learn More
-
Overall Diameter: 44.5mm
Assembled Length: 54mm
Hub Diameter: 44.5mm
Set Screw Size: M6
Learn More
-
Overall Diameter: 44.5mm
Assembled Length: 54mm
Hub Diameter: 44.5mm
Set Screw Size: M6
Learn More
-
Overall Diameter: 54mm
Assembled Length: 54mm
Hub Diameter: 54mm
Set Screw Size: M6
Learn More
-
Overall Diameter: 54mm
Assembled Length: 54mm
Hub Diameter: 54mm
Set Screw Size: M6
Learn More
-
Overall Diameter: 54mm
Assembled Length: 64mm
Hub Diameter: 54mm
Set Screw Size: M8
Learn More
-
Overall Diameter: 54mm
Assembled Length: 64mm
Hub Diameter: 54mm
Set Screw Size: M8
Learn More
-
Overall Diameter: 65mm
Assembled Length: 89mm
Hub Diameter: 65mm
Set Screw Size: M8
Learn More
-
Overall Diameter: 65mm
Assembled Length: 89mm
Hub Diameter: 65mm
Set Screw Size: M8
Learn More
-
Overall Diameter: 84mm
Assembled Length: 108mm
Hub Diameter: 84mm
Set Screw Size: M10
Learn More
-
Overall Diameter: 84mm
Assembled Length: 108mm
Hub Diameter: 84mm
Set Screw Size: M10
Learn More
-
Overall Diameter: 96mm
Assembled Length: 115mm
Hub Diameter: 96mm
Set Screw Size: M12
Learn More
-
Overall Diameter: 96mm
Assembled Length: 115mm
Hub Diameter: 96mm
Set Screw Size: M12
Learn More
-
Overall Diameter: 115mm
Assembled Length: 133mm
Hub Diameter: 102mm
Set Screw Size: M12
Learn More
-
Overall Diameter: 115mm
Assembled Length: 133mm
Hub Diameter: 102mm
Set Screw Size: M12
Learn More
-
Overall Diameter: 127mm
Assembled Length: 153mm
Hub Diameter: 108mm
Set Screw Size: M12
Learn More
-
Overall Diameter: 127mm
Assembled Length: 153mm
Hub Diameter: 108mm
Set Screw Size: M12
Learn More
