CCNBE28SB Cam Follower
£31.20
£26.00
In stock
SKU
CF-23928
InsideDiameter:
12.70mm
=0.5inch OutsideDiameter: 22.23mm
=7/8inch Width: 12.70mm
=0.5inch
=0.5inch OutsideDiameter: 22.23mm
=7/8inch Width: 12.70mm
=0.5inch

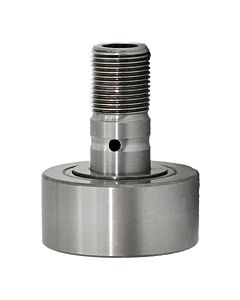

Cam followers are specialised needle type bearings designed to follow cam lobe profiles. They are similar in operation to a standard bearing, but instead of an inner race they have a solid stud mount.
Needle type cam followers can achieve high speeds but havelimited axial and thrust load capacities. For higher loads, roller elements can be used instead.
A= 0.875 inch
B= 0.5 inch
C= 0.5 inch
D= 0.5 inch
E= 0.875 inch
F= 0.375 inch
Thread Class 2A G= 3/8-24 UNF
H= 3/16 inch
Min Boss Diameter= 1/2 inch
Recommended Torque= 95 lbf-in
Max Static Capacity= 2065 lbs
Basic Dynamic Rating= 1660 lbs
Needle type cam followers can achieve high speeds but havelimited axial and thrust load capacities. For higher loads, roller elements can be used instead.
A= 0.875 inch
B= 0.5 inch
C= 0.5 inch
D= 0.5 inch
E= 0.875 inch
F= 0.375 inch
Thread Class 2A G= 3/8-24 UNF
H= 3/16 inch
Min Boss Diameter= 1/2 inch
Recommended Torque= 95 lbf-in
Max Static Capacity= 2065 lbs
Basic Dynamic Rating= 1660 lbs
