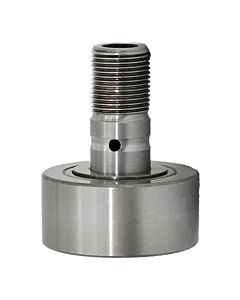

CCNBE16S Cam Follower
£33.60
£28.00
In stock
SKU
CF-23918
InsideDiameter:
6.35mm
=0.25inch OutsideDiameter: 12.70mm
=1/2inch Width: 9.53mm
=0.375inch
=0.25inch OutsideDiameter: 12.70mm
=1/2inch Width: 9.53mm
=0.375inch
Cam followers are specialised needle type bearings designed to follow cam lobe profiles. They are similar in operation to a standard bearing, but instead of an inner race they have a solid stud mount.
Needle type cam followers can achieve high speeds but havelimited axial and thrust load capacities. For higher loads, roller elements can be used instead.
A= 0.5 inch
B= 0.375 inch
C= 0.375 inch
D= 0.25 inch
E= 0.625 inch
F= 0.25 inch
Thread Class 2A G= 10-32 UNF
Min Boss Diameter= 19/64 inch
Recommended Torque= 15 lbf-in
Max Static Capacity= 790 lbs
Basic Dynamic Rating= 680 lbs
Needle type cam followers can achieve high speeds but havelimited axial and thrust load capacities. For higher loads, roller elements can be used instead.
A= 0.5 inch
B= 0.375 inch
C= 0.375 inch
D= 0.25 inch
E= 0.625 inch
F= 0.25 inch
Thread Class 2A G= 10-32 UNF
Min Boss Diameter= 19/64 inch
Recommended Torque= 15 lbf-in
Max Static Capacity= 790 lbs
Basic Dynamic Rating= 680 lbs
