BUTYLFOOD-3
£1,646.16
£1,371.80
In stock
SKU
FT-BUTYLFOOD-3

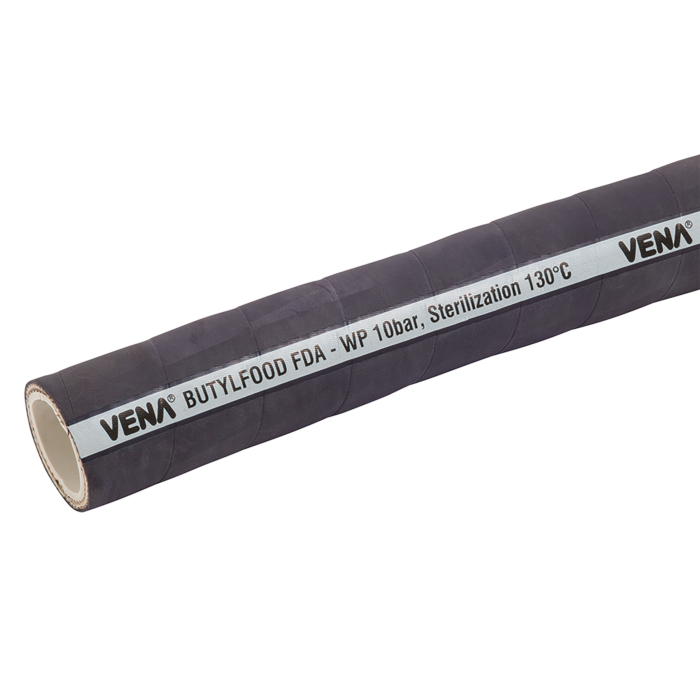

3" BUTYLFOOD HOSE 10M
3" BUTYLFOOD HOSE 10M
Applications: Transport of liquid or semi-liquid food productsat high temperatures by impulsion or suction. Designed to resist pressure or vacuum. Recommended when a smaller Bend randius is required. Properties: Odourless, tasteless and completely non-toxic. White smooth inner, purple smooth outer. Can be equipped with 316L stainless steel fittings on each end with a roughness value of less than 0.8mm (or 0.5mm on request). Operationl temperature range from -20?C (-4?F) to +100?C (+212?F), may reach up to +120?C (+248?F). Can be sterilised at +130?C (+266?F). Available at a maximum length of 40m. Construction: Butyl food grade inner and EPDM cover. Equipped with two textile reinforcements inside the wall of the tube and a double steel spring wire and copper braiding which prevent dischrages of static energy. Regulations: Butylic rubber produced in compliance with: US FDA Standard 21 CRFR 177.2600. German BfR Standard part XXI Cat 2. ResAp 2004 (5), according to Reg 1935/2004/EEC and Reg 10/2011/EEC. 3A Sanitary Standard 18-03 Class II (hose). Butylic rubber used is in accordance with EU Directive 2002/95/ECC for Restriction of the use of Hazardous Substances (RoSH).
BearingShopUK holds a large stock of Industrial equipment, including the BUTYLFOOD-3 Range of Food Application.
Please allow 3-4 days for delivery from our Fluid Power Branch.
Please view the below PDF for more information,
TS60178
Applications: Transport of liquid or semi-liquid food productsat high temperatures by impulsion or suction. Designed to resist pressure or vacuum. Recommended when a smaller Bend randius is required. Properties: Odourless, tasteless and completely non-toxic. White smooth inner, purple smooth outer. Can be equipped with 316L stainless steel fittings on each end with a roughness value of less than 0.8mm (or 0.5mm on request). Operationl temperature range from -20?C (-4?F) to +100?C (+212?F), may reach up to +120?C (+248?F). Can be sterilised at +130?C (+266?F). Available at a maximum length of 40m. Construction: Butyl food grade inner and EPDM cover. Equipped with two textile reinforcements inside the wall of the tube and a double steel spring wire and copper braiding which prevent dischrages of static energy. Regulations: Butylic rubber produced in compliance with: US FDA Standard 21 CRFR 177.2600. German BfR Standard part XXI Cat 2. ResAp 2004 (5), according to Reg 1935/2004/EEC and Reg 10/2011/EEC. 3A Sanitary Standard 18-03 Class II (hose). Butylic rubber used is in accordance with EU Directive 2002/95/ECC for Restriction of the use of Hazardous Substances (RoSH).
BearingShopUK holds a large stock of Industrial equipment, including the BUTYLFOOD-3 Range of Food Application.
Please allow 3-4 days for delivery from our Fluid Power Branch.
Please view the below PDF for more information,
TS60178
