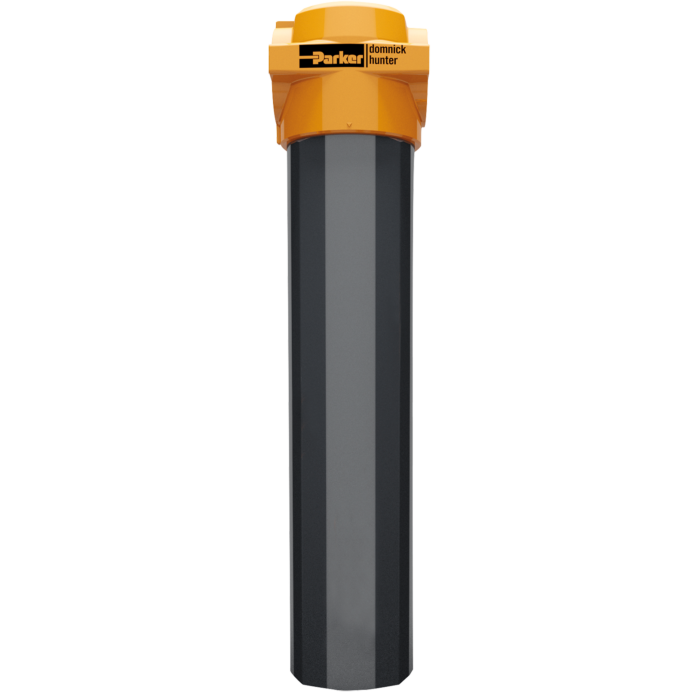

ACSP020CGMX

1/2" OIL-X EV GR ACSP OIL V andO 1.8NM_/MIN
The Domnick Hunter OIL-X EVOLUTION range of compressed air filters has been designed from the outset to meet current and forthcoming requirements for compressed air quality. Providing an optimal flow path is key to reducing system operating costs. Using aerospace technology, Domnick Hunter has optimised the flow path through the housing and element, significantly reducing air turbulence and pressure losses. Stated flows are @ 7 bar g (100 psi g) ANR conditions. High efficiency general purpose protection. Particle removal of down to 1 micron, including water & oil aerosols. Maximum remaining oil aerosol content 0.6mg/m3 at 21ﾰC/0.5ppm(w) at 70ﾰF. Automatic Drain. 16 bar Operating Pressure.
BearingShopUK holds a large stock of Compressed Air and Ring Main equipment, including the ACSP020CGMX Range of Filter.

Please allow 3-4 days for delivery from our Fluid Power Branch.

Please view the below PDF for more information,
TS68210
