A30850WS
£1,031.54
£859.62
In stock
SKU
FT-A30850WS

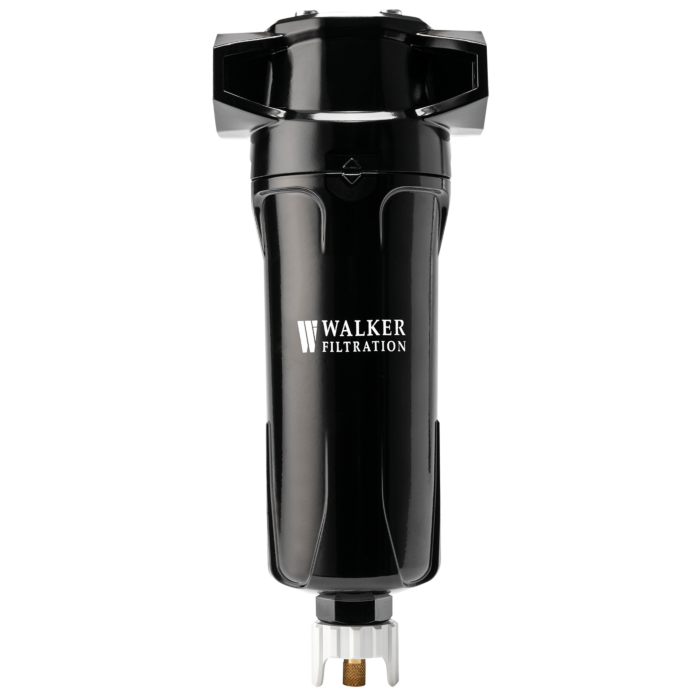

2.1/2" BSPP WATER SEPARATOR 24000 LPM
2.1/2" BSPP WATER SEPARATOR 24000 LPM
Technical Notes: 1. Water separators are fitted as standard with normally open float operated automatic drain valves, ADVS16 on models A30006WS to A30050WS and ADVSE16 on models A30070WS to A31500WS. Standard filters operate at 16 barg (232 psig) at 80ﾰC (176ﾰF). Normally closed automatic drain valves (ADVS16C) are available for low flow applications. A 20.7 barg (300 psig) range at 120ﾰC (248ﾰF) is available when supplied with a manual drain valve (MDV25 / MDVE25). 2. Connecting kits are required to connect water separators to models A30006 to A31500. 3. Wall mounting brackets are available for all models. 4. Threaded connections are Rp (BSP Parallel) to ISO 7-1 or NPT to ANSI/ASME B1.20.1 if supplied within North America. Rc (BSP Taper) to ISO 7-1 also available. 5. For NPT threads, add the suffix N, e.g., A30070NWS, and for Rc threads add the suffix C, e.g. A30070CWS.
BearingShopUK holds a large stock of Compressed Air and Ring Main equipment, including the A30850WS Range of Filter.
Please allow 3-4 days for delivery from our Fluid Power Branch.
Please view the below PDF for more information,
Technical Notes: 1. Water separators are fitted as standard with normally open float operated automatic drain valves, ADVS16 on models A30006WS to A30050WS and ADVSE16 on models A30070WS to A31500WS. Standard filters operate at 16 barg (232 psig) at 80ﾰC (176ﾰF). Normally closed automatic drain valves (ADVS16C) are available for low flow applications. A 20.7 barg (300 psig) range at 120ﾰC (248ﾰF) is available when supplied with a manual drain valve (MDV25 / MDVE25). 2. Connecting kits are required to connect water separators to models A30006 to A31500. 3. Wall mounting brackets are available for all models. 4. Threaded connections are Rp (BSP Parallel) to ISO 7-1 or NPT to ANSI/ASME B1.20.1 if supplied within North America. Rc (BSP Taper) to ISO 7-1 also available. 5. For NPT threads, add the suffix N, e.g., A30070NWS, and for Rc threads add the suffix C, e.g. A30070CWS.
BearingShopUK holds a large stock of Compressed Air and Ring Main equipment, including the A30850WS Range of Filter.
Please allow 3-4 days for delivery from our Fluid Power Branch.
Please view the below PDF for more information,
