A30175RX25
£530.76
£442.30
In stock
SKU
FT-A30175RX25

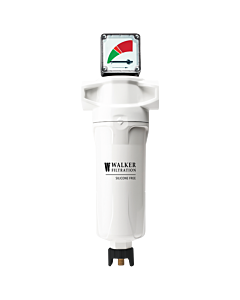

1" BSPP 25 UM FILTER 4950 LPM
1" BSPP 25 UM FILTER 4950 LPM
Technical Notes: 1. Direction of air flow is outside to in through the filter element. 2. Pop up indicators (65DPUG3) are fitted to models A30025 to A30050 as standard. Differential pressure indicators (65DPIG) are fitted to models A30070 to A31500 as standard. Activated Carbon (AC) grade filters do not include DP equipment. Volt free contact options are available upon request. 3. Manual drain valves (MDV25 on models A30006 to A30050 and MDVE25 on models A30070 to A31500), are fitted as standard. 4. Activated Carbon Filters must not operate in oil saturated conditions and will not remove certain types of gases including carbon monoxide (CO) and carbon dioxide (CO2). 5. Alpha Filters are manufactured from cast aluminium alloy and are PED 2014/68/EU compliant for group 2 gases. 6. Threaded connections are Rp (BSP Parallel) to ISO 7-1 or NPT to ANSI/ASME B1.20.1 if supplied within North America. Rc (BSP Taper) to ISO 7-1 also available. 7. For NPT threads, add the suffix N, e.g., A30070NRXA, and for Rc threads add the suffix C, e.g. A30070CRXA. 8. Filters are suitable for use with mineral and synthetic oils plus oil-free compressed air applications. 9. Filter elements should be changed every 12 months / 8000 hours (whichever comes first). Activated carbon filter elements should be changed every 6 months.
BearingShopUK holds a large stock of Compressed Air and Ring Main equipment, including the A30175RX25 Range of Filter.
Please allow 3-4 days for delivery from our Fluid Power Branch.
Please view the below PDF for more information,
Technical Notes: 1. Direction of air flow is outside to in through the filter element. 2. Pop up indicators (65DPUG3) are fitted to models A30025 to A30050 as standard. Differential pressure indicators (65DPIG) are fitted to models A30070 to A31500 as standard. Activated Carbon (AC) grade filters do not include DP equipment. Volt free contact options are available upon request. 3. Manual drain valves (MDV25 on models A30006 to A30050 and MDVE25 on models A30070 to A31500), are fitted as standard. 4. Activated Carbon Filters must not operate in oil saturated conditions and will not remove certain types of gases including carbon monoxide (CO) and carbon dioxide (CO2). 5. Alpha Filters are manufactured from cast aluminium alloy and are PED 2014/68/EU compliant for group 2 gases. 6. Threaded connections are Rp (BSP Parallel) to ISO 7-1 or NPT to ANSI/ASME B1.20.1 if supplied within North America. Rc (BSP Taper) to ISO 7-1 also available. 7. For NPT threads, add the suffix N, e.g., A30070NRXA, and for Rc threads add the suffix C, e.g. A30070CRXA. 8. Filters are suitable for use with mineral and synthetic oils plus oil-free compressed air applications. 9. Filter elements should be changed every 12 months / 8000 hours (whichever comes first). Activated carbon filter elements should be changed every 6 months.
BearingShopUK holds a large stock of Compressed Air and Ring Main equipment, including the A30175RX25 Range of Filter.
Please allow 3-4 days for delivery from our Fluid Power Branch.
Please view the below PDF for more information,
