96100

AIR INJECTION CONTROL BOX 220V/50HZ

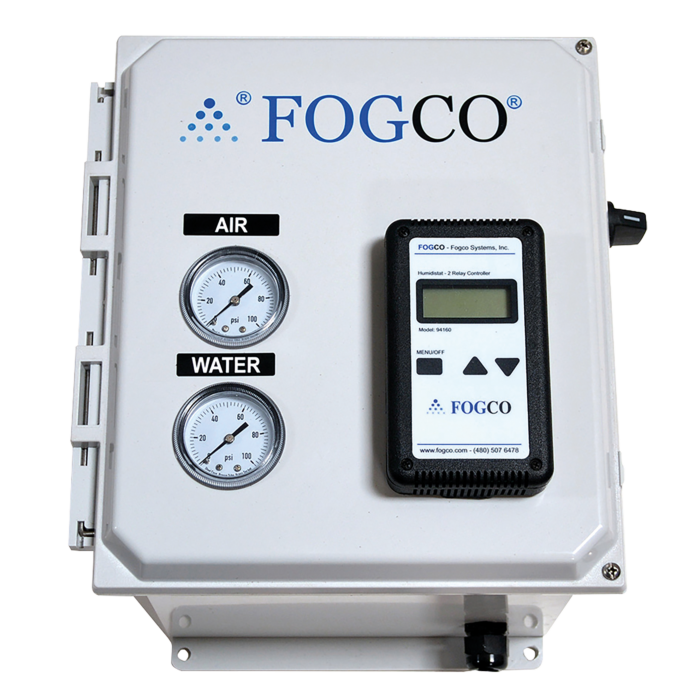

The Fogco Air Injection Dry Fog System utilises the proprietary control box, capable of producing over 150lbs of dry fog per hour. It includes the FOGCO controller II microprocessor. The box allows on-site adjustments to the system performance and output. The Drip Free air injection nozzles prevent dripping when the system shuts down and to prevent the water supply from running if there is a loss of air pressure. The air injection nozzles are capable of producing flow rates from 8 lbs/hr to 16lbs/hr while providing droplets as small as 1 micron and achieving humidity levels up to 99%. The Fogco Air I injection System requires the availability of compressed air of at least 80 psi and 25cfm and water pressure of 60 psi to produce the maximum output of 150 lbs/hr. The system utilises directionally adjustable dry fog nozzles on a magnetic base or hung using an 3/8" mount.
BearingShopUK holds a large stock of Industrial equipment, including the 96100 Range of Control Box.

Please allow 3-4 days for delivery from our Fluid Power Branch.

Please view the below PDF for more information,
