8048129
£393.94
£328.28
In stock
SKU
FT-8048129

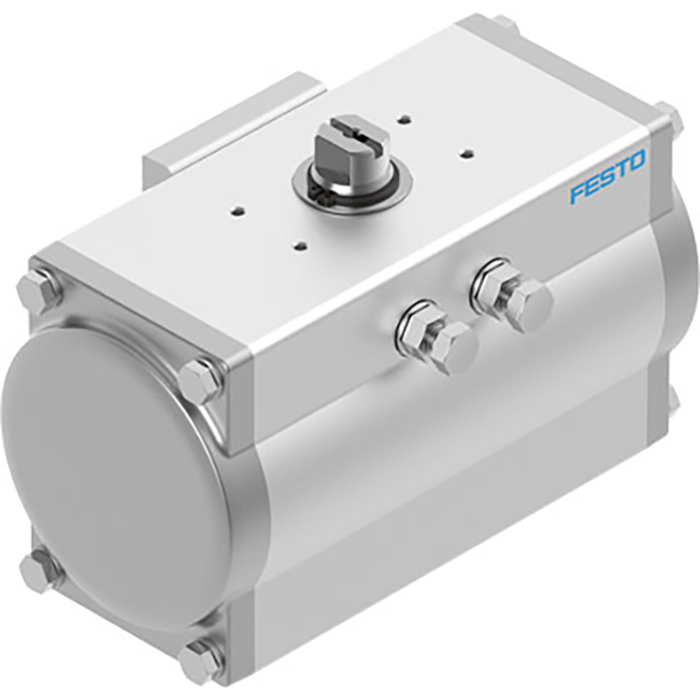

1/4" Female BSPP Double Acting Semi-Rotary Drive
1/4" Female BSPP Double Acting Semi-Rotary Drive
0-90ﾰ rotation angle to pilot ball, butterfly and plug valves. Double acting torques from 10.30 to 2233.30Nm at 5.50 bar. Single acting torques from 7.20 to 913.20Nm end of spring. Aluminium body or epoxy coated aluminium body options available. ATEX II 2G Ex h IIC T4 Gb / II 2D Ex h IIIC T105ﾰC Db certification. DNV certified. SIL3 rated. Conforms to ISO 5211, DIN 3337 and VDI/VDE 3845. NAMUR pneumatic connection for solenoid valve installation.
BearingShopUK holds a large stock of Pneumatics and Vacuum equipment, including the 8048129 Range of Double Acting.
Please allow 3-4 days for delivery from our Fluid Power Branch.
Please view the below PDF for more information,
TS6270
0-90ﾰ rotation angle to pilot ball, butterfly and plug valves. Double acting torques from 10.30 to 2233.30Nm at 5.50 bar. Single acting torques from 7.20 to 913.20Nm end of spring. Aluminium body or epoxy coated aluminium body options available. ATEX II 2G Ex h IIC T4 Gb / II 2D Ex h IIIC T105ﾰC Db certification. DNV certified. SIL3 rated. Conforms to ISO 5211, DIN 3337 and VDI/VDE 3845. NAMUR pneumatic connection for solenoid valve installation.
BearingShopUK holds a large stock of Pneumatics and Vacuum equipment, including the 8048129 Range of Double Acting.
Please allow 3-4 days for delivery from our Fluid Power Branch.
Please view the below PDF for more information,
TS6270
