63MP2C125A0075

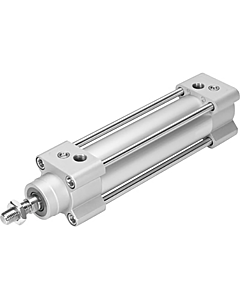

125X75 3/8" BSPP S63 DBLE ACT CYLINDER
Series 63 pneumatic cylinders comply with the ISO 1552 standard. They have been developed to guarantee high performance whilst also offering significant reduction in weight. The new adjustable pneumatic and mechanical cushioning system ensures Series 63 also reduces the noise caused by the impact of the piston on the end block. Type of construction: profile (with screws). Operation: double-acting. Materials: aluminium end blocks, technopolymer (nominal bore 32mm) or aluminium (nominal bore 40 to 125mm) piston, rolled stainless steel AISI 420B piston rod, zinc-plated steel piston rod nut, anodised aluminium tube, NBR-PU rod, piston and cushion seals. Type of Mounting: with front/rear flange, foot mounting, with centre/front/rear/swivel trunnion. Strokes, min - max: 10 to 2500mm. Operating temperature: 0ﾰC to +80ﾰC (with dry air: -20ﾰC). Operating pressure: 1 to 10 bar. Speed: 10 to 500mm/sec, no load. Fluid: filtered air, in class 7.8.4, according to ISO 8573-1, without lubrication. If lubricated air is used, it is recommended to use oil ISOVG32. Once applied, the lubrication should never be interrupted.
BearingShopUK holds a large stock of Pneumatics and Vacuum equipment, including the 63MP2C125A0075 Range of Double Acting.

Please allow 3-4 days for delivery from our Fluid Power Branch.

Please view the below PDF for more information,
TS68272
