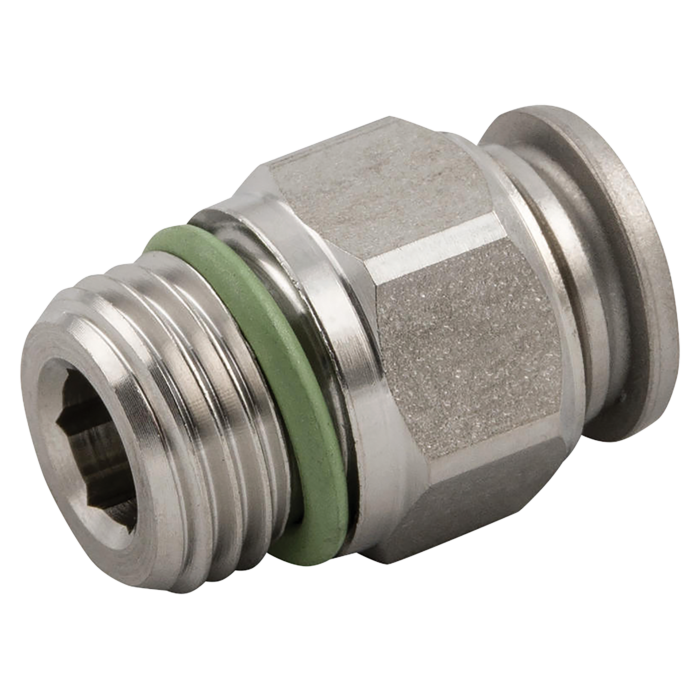

60020-14-1/2

14MM OD X 1/2" BSPP MALE STUD 316 ST/ST
The collet is made in stainless steel 316L ensures the perfect tube clamping with every kind of material without damaging the surface. The connection between the tube and the fitting ensures a total tightness even in severe conditions such as impact and vibrations. All of the threads from this range have been equipped with tightening parts, which allow the direct assembly of the fittings, reducing the installation time. This series is fully made of stainless steel AISI 316L and developed to be used with aggressive fluids and food applications. Also ideal for use in salty environments and in machines that need frequent washing with aggressive detergents. Certified NSF 169 and conformed to NSF 61 & NSF 372 standards. All parallel threads have a Food FKM seal as standard. Food FKM o-rings as standard for all parallel threads. All the straight adaptors, with taper or parallel threads can be assembled also with allen keys and it is possible to use then in reduced spaces.
BearingShopUK holds a large stock of Pneumatics and Vacuum equipment, including the 60020-14-1/2 Range of Male Stud.

Please allow 3-4 days for delivery from our Fluid Power Branch.

Please view the below PDF for more information,
TS1378
