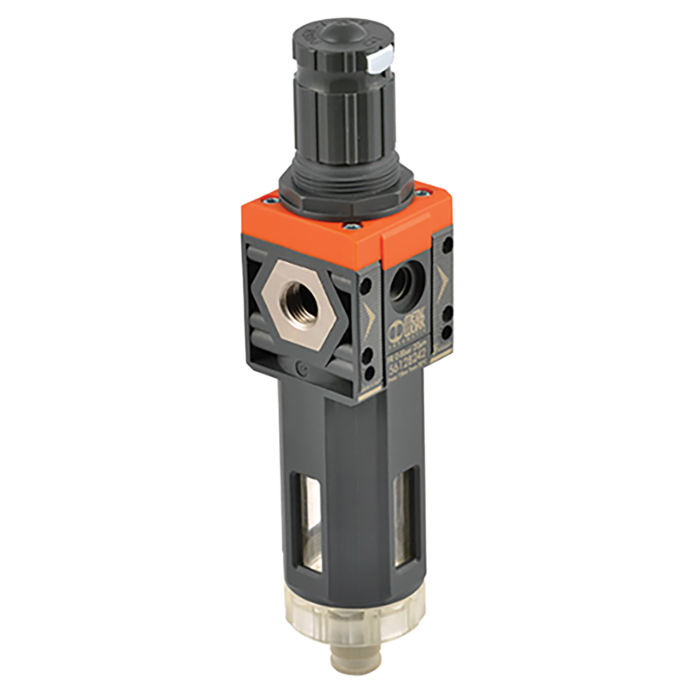

5611B241

SYNTESI SY1 1/8 FR 0-8 BAR 20 MIC
Syntesi is an important milestone achieved by Metal Work, the result of thirty years experience producing air treatment units. Syntesi obtains the best possible performance in a reduced space and with limited weight. The capacity is much higher than that of other units of the same size. These modular units feature a very simple yet effective system that requires no brackets, stay bolts or yoke for assembling the elements. The basic version of Syntesi incorporates numerous functions that are not provided or are only optional with traditional units: Padlockable knobs. Additional pneumatic ports on the front and back. Flow options from left to right or vice versa. Regulators with compensation system which are accurate even when the upstream pressure changes, with rapid downstream pressure relief. Full indelible marking. Automatic condensate drain even in size 1. 360ﾰ visual inspection of oil and condensate levels. The basic materials - technopolymer and nickel-plated brass - have excellent corrosion resistance. An anti-corrosion version is available with stainless steel components (screws and plates) or Geomet related ones (regulator springs). Technical Specifications: Padlockable knob: the knobs of the regulators, filter regulators and standard sectioning valves can all be padlocked. Fluid: compressed air or other inert gases.
BearingShopUK holds a large stock of Pneumatics and Vacuum equipment, including the 5611B241 Range of Filter Regulator.

Please allow 3-4 days for delivery from our Fluid Power Branch.

Please view the below PDF for more information,
