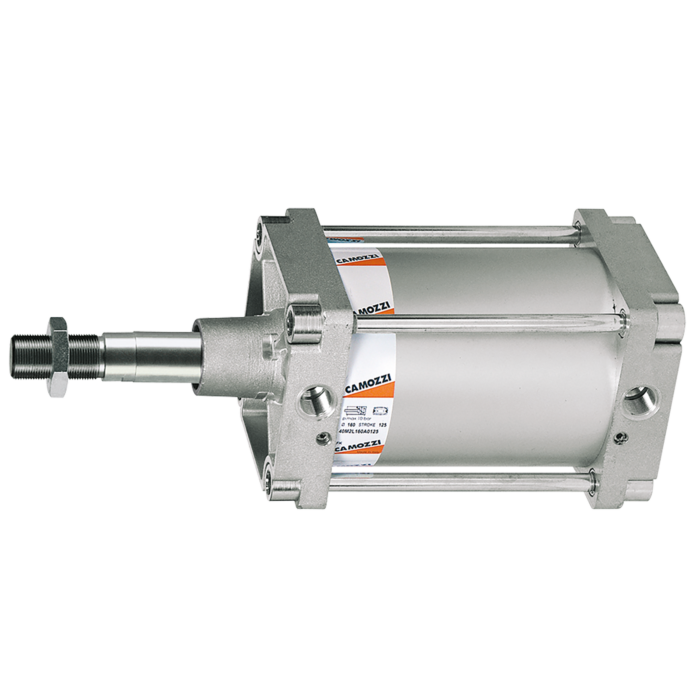

40M2L160A0600

160 X 600 36X2 THREAD 8BAR DBL ACT
Series 40 cylinders have been designed in compliance with ISO 15552 standards and with previous DIN/ISO 6431-VDMA 24562 standards. A permanent magnet on the piston of these cylinders is able to send, through proximity switches mounted on the cylinder sliding axis, electrical signals to indicate its position. Type of construction: with tie-rods. Operation: double-acting. Materials: aluminium end blocks and piston, rolled stainless steel AISI 420B (nominal bore 160-200mm) piston rod, zinc-plated piston rod nut, anodised aluminium tube, zinc-plated steel tie-rods and tie-rod nuts, NBR-PU rod, piston and cushion seals, brass rod scraper. Type of Mounting: with tie-rods, with front/rear flange, foot mounting, with centre/front/rear/swivel trunnion. Strokes, min - max: 10 to 2500mm. Operating temperature: 0ﾰC to +80ﾰC (with dry air: -20ﾰC). Operating pressure: 1 to 10 bar. Speed: 10 to 500mm/sec, no load. Fluid: filtered air without lubrication. If lubricated air is used, it is recommended to use oil ISOVG32. Once applied, the lubrication should never be interrupted.
BearingShopUK holds a large stock of Pneumatics and Vacuum equipment, including the 40M2L160A0600 Range of Double Acting.

Please allow 3-4 days for delivery from our Fluid Power Branch.

Please view the below PDF for more information,
