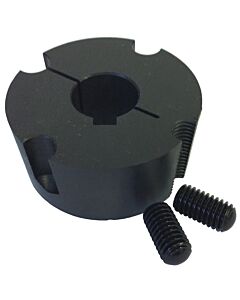

4040 4" Taperlock Bush
£46.80
£39.00
In stock
SKU
33592
To Suit Shaft Size: 4"
Bush Series: 4040
Large End Diameter: 146.05mm
Bush Length: 101.5mm
Keyway Size: 1in
Bush Series: 4040
Large End Diameter: 146.05mm
Bush Length: 101.5mm
Keyway Size: 1in
Taperlock Bushes are used to secure Taperlock Pulleys, Sprockets or Couplings to Shafts. This 4040 Series Taperlock Bush suits a shaft size of 101.6mm (4").
The Taperlock Bush fits into the hub with 2 grub screws, as the grub screws are tightened the Taperlock compresses onto the shaft and keyway securing the Pulley/Sprocket. To remove the Bush, you remove the 2 grub screws and screw one back into the third hole, lifting the Bush out.
Our Taperlock Bushes are made from Cast Iron, however Mild Steel or Stainless Steel can be supplied but are generally considerably more expensive.
**Please Note: Taperlock Bushes are meant for parallel shafts, not tapered shafts.
Please watch the short video below for more information:
The Taperlock Bush fits into the hub with 2 grub screws, as the grub screws are tightened the Taperlock compresses onto the shaft and keyway securing the Pulley/Sprocket. To remove the Bush, you remove the 2 grub screws and screw one back into the third hole, lifting the Bush out.
Our Taperlock Bushes are made from Cast Iron, however Mild Steel or Stainless Steel can be supplied but are generally considerably more expensive.
**Please Note: Taperlock Bushes are meant for parallel shafts, not tapered shafts.
Please watch the short video below for more information:
