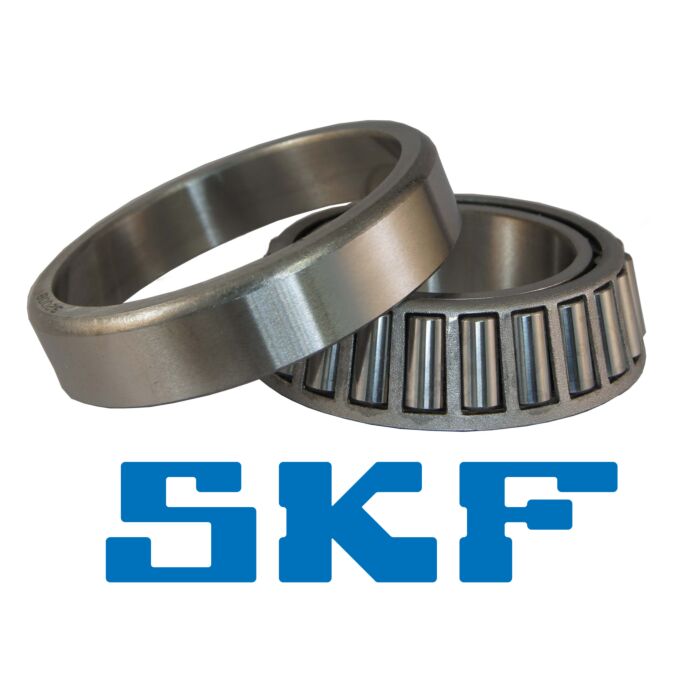

32210J2/Q SKF Metric Taper Bearing
£32.70
£27.25
In stock
SKU
43742
Inside Diameter: 50mm
External Diameter: 90mm
Width: 24.75mm
Brand: SKF
External Diameter: 90mm
Width: 24.75mm
Brand: SKF
Technical Dimensions
| Inside Diameter: | 50mm |
| Outside Diameter: | 90mm |
| Width: | 24.75mm |
| Dynamic Load Rating: | 82.5 kN |
| Static Load Rating: | 100 kN |
| Fatigue Load Limit: | 11.4 kN |
| Reference Speed: | 5600 r/min |
| Limiting Speed: | 7500 r/min |
| d : | 68.5mm |
| d1 : | 23mm |
| C : | 19mm |
| r1,2 (min): | 1.5mm |
| r3,4 (min): | 1.5mm |
| a : | 21mm |
| da (max): | 58mm |
| db (min): | 57mm |
| Da (min): | 78mm |
| Da (max): | 83mm |
| Db (min): | 85mm |
| Ca (min): | 3mm |
| Cb (min): | 5.5mm |
| ra (max): | 1.5mm |
| rb (max): | 1.5mm |
| e : | 0.43 |
| Y : | 1.4 |
| Yo : | 0.8 |
