24N2A20A500

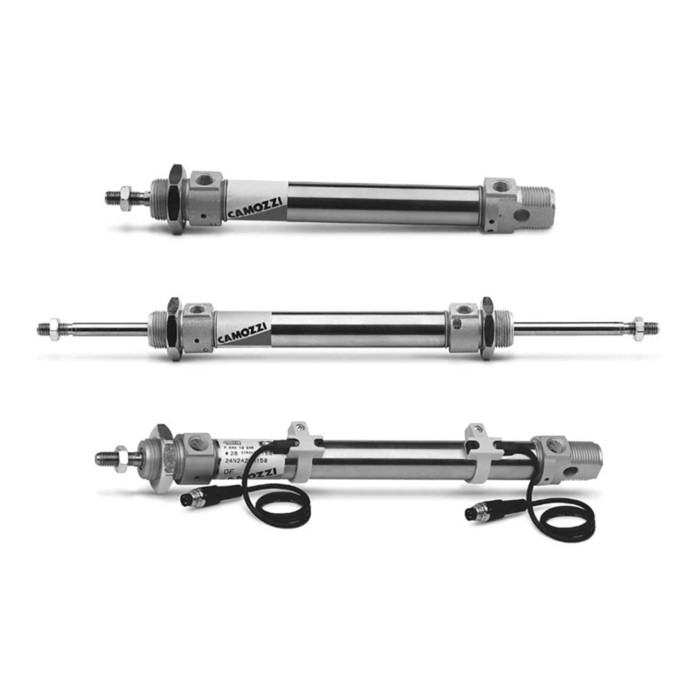

MINI CYL D.ACTING 20MM 500MM ST
Single and double-acting. Standard CETOP RP52P DIN/ISO 6432. Stainless steel rod and tube. Anodized AL end-blocks. Type of construction: flanged. Operation: single-acting or double-acting. Materials: end-blocks = anodized AL, tube and rod = stainless steel, piston = AL, seals = NBR - PU, other parts = see coding. Brackets: screw, flange, feet, trunnion. Stroke min - max: 16: 10 - 600 mm; 20 - 25: 10 - 1000 mm. Bores: 16, 20, 25. Operating temperature: 0ﾰC to 80ﾰC (with dry air -20ﾰC). Operating pressure: 1 to 10 bar (double-acting); 2 to 10 bar (single-acting). Fluid: Filtered air, without lubrication. If lubricated air is used, it is recommended to use oil ISO VG32. Once applied the lubrication should never be interrupted. Speed: 10 to 1000 mm/sec (without load).
BearingShopUK holds a large stock of Pneumatics and Vacuum equipment, including the 24N2A20A500 Range of Double Acting.

Please allow 3-4 days for delivery from our Fluid Power Branch.

Please view the below PDF for more information,
