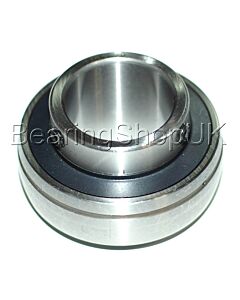

1145-45 Bearing Insert
£33.13
£27.61
In stock
SKU
102748
Inside Diameter: 45mm
Outside Diameter: 85mm
Inner Width: 49.2mm
Outer Width: 19mm
Style: parallel outer and integral set screw lock
Outside Diameter: 85mm
Inner Width: 49.2mm
Outer Width: 19mm
Style: parallel outer and integral set screw lock
Bearing Insert
seperator
Technical Information
| Inside Diameter: | 45mm |
| Outside Diameter (D): | 85mm |
| Outer Width (C): | 19mm |
| Length Through Bore (B): | 49.2mm |
| Rear to Center (S): | 19.04mm |
| Inner Race OD (d1): | 57.4mm |
| Set Screw To Front (M): | 8mm |
| Radius (r): | 1mm |
| Dynamic Load Rating: | 32500N |
| Static Load Rating: | 20500N |
| Max Speed: | 3700rev/min |
| Weight: | 0.73kg |
